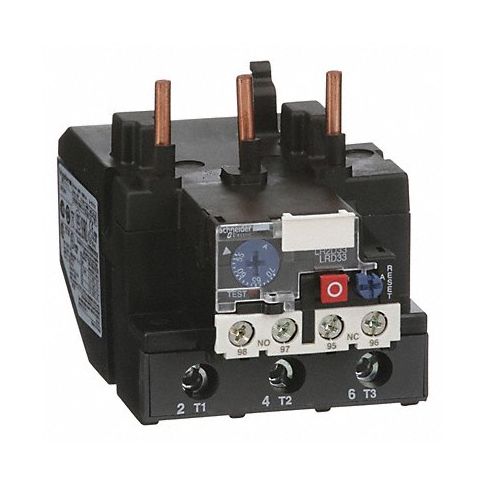

Ovrload Relay 55 to 70A Class 10 3P 690V MPN:LRD3361
Free Shipping
In Stock
Introducing the TeSys IEC Contactors and Overload Relays from Schneider Electric. These products are designed for industrial motor control applications and provide complete motor starters when combined with a contactor. With a rating of 600VAC, these products feature saddle clamp terminals and can be installed on either DIN rail or panel mount. The overload relay is UL Listed, CSA and CE Certified for 3-phase applications and features bimetallic elements with Class 10 trip characteristics and ambient compensation. Adjustable current range and lockable, sealable manual/auto reset test trip options make this product versatile and user friendly. Use the TeSys IEC Contactors and Overload Relays for a variety of applications including machine tools, compressors, pumps, and more. The combination of high voltage capacity, durability, and safety features makes this product ideal for any industrial setting. Upgrade your motor control systems today with Schneider Electric's TeSys IEC Contactors and Overload Relays.
Top product features:
- Saddle clamp terminals for easy installation
- Ambient compensated overload relay for precision sensitivity
- Manual/auto reset options for user flexibility
Top product applications:
- Machine tools requiring variable speed control
- Pump and fan systems for temperature and pressure regulation
- Compressor systems for material handling and processing
Technical Specifications
- Item - Relay IEC Style Overload Relay
- Use With - Contactors and Starters Mfr. Series LC1D65 to LC1D80 Contactors
- Overload Relay Current Range 55 to 70A
- Trip Class - Overload 10
- Number of Poles 3
- Reset Type - Relay Manual
- Body Height - Relay 4.84 in
- Body Width - Relay 2.95 in
- Body Depth - Relay 4.76 in
- Overall Height - Relay 4.84 in
- Sensing Method Bimetallic
- Features Single Phase Sensitivity, Differential
- Standards ATEX D 94/9/CE, CSA, GOST, UL
Manufacturer Details
- Manufacturer: Schneider
- Condensed Mfg Number: LRD3361
- MPN: LRD3361
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: FR
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8537109090
- GDS Category Name: IEC Overload Relays
- GDS Family Name: Starters and Contactors
- GDS Segment Name: Electrical
- UNSPSC: 39121520
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 20
- UNSPSC Commodity Name: Overload relays
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:16pm UTC Category: Starters and Contactors
