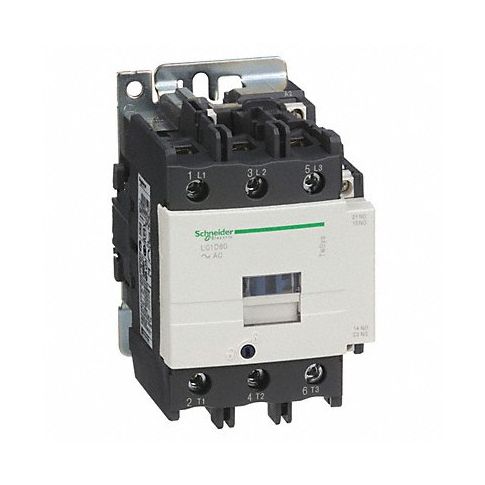

G3483 Contactor IEC 120VAC 3P 80A MPN:LC1D80G7
Free Shipping
In Stock
The G3483 Contactor is an IEC rated contactor with a compact and rugged design for heavy-duty industrial motor control applications. With 80A rating and a 15 million operation life cycle, this contactor offers reliable performance in demanding conditions. It comes with wire guides and captive screws for easy installation, making it suitable for DIN rail or panel mounting. You can pair it with an overload relay to create a complete motor starter that reduces downtime and maintenance costs. With its 3 poles and 120V AC coil voltage, the G3483 Contactor is ideal for controlling large inductive and resistive motors in various industries. Its touch-safe design makes it safe to use in both open and enclosed control circuits, providing peace of mind to users. With its robust features, the G3483 Contacto
Top product features:
- IP20 touch-safe rating for safe use in open and enclosed control circuits
- Compact and rugged design for heavy-duty industrial motor control applications
- Removable terminal cover for easy installation and wire guides for simplified wiring
Top product applications:
- Industrial motor control and protection circuits in manufacturing plants, mines, and power stations
- Variable speed drives and soft starters for adjustable-speed induction motors
- Pump and fan controls in commercial buildings, water treatment plants, and HVAC systems
Technical Specifications
- Item IEC Magnetic Contactor
- Full Load Amps-Inductive 80 A
- Full Load Amps-Resistive 125 A
- Number of Poles 3
- Coil Volts 120V AC
- Reversing No
- HP @ 1 Phase - 120V 7 1/2 hp
- HP @ 1 Phase - 240V 15 hp
- HP @ 3 Phase - 208V 30 hp
- HP @ 3 Phase - 240V 30 hp
- HP @ 3 Phase - 480V 60 hp
- HP @ 3 Phase - 575V 60 hp
- Aux. Contact Configuration 1NO/1NC
- Enclosure NEMA Rating No Enclosure
- Hz 50/60
- Height 5 in
- Width 3.34 in
- Depth 5.12 in
- Standards CSA, UL
- Frame / Series / Class / Code TeSys
Manufacturer Details
- Manufacturer: Schneider
- Condensed Mfg Number: LC1D80G7
- MPN: LC1D80G7
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536490065
- GDS Category Name: IEC Magnetic Contactors
- GDS Family Name: Starters and Contactors
- GDS Segment Name: Electrical
- UNSPSC: 39121529
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 29
- UNSPSC Commodity Name: Contactors
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
