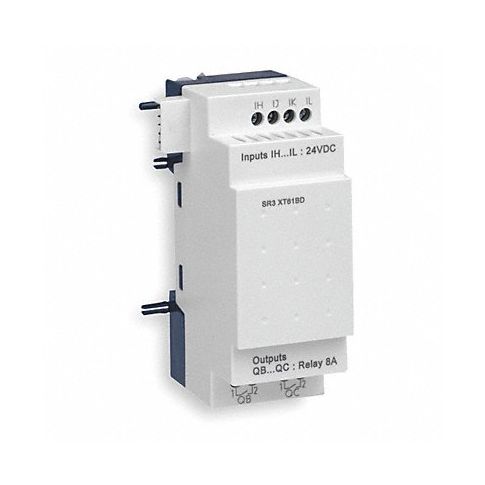

Extension Module 24VAC For use with SR3B MPN:SR3XT61B

Logic Relays and Extension Modules
• 16 counters and timers Integral display
Expandable design allows users to manage a simple automation system with multiple inputs and outputs, without the need for a complex programmable controller. 6-button navigation allows direct programming in any of several computer languages. Compact, space-saving design. Extension modules add inputs and outputs to customize systems for specific needs. Programming software No. 1CNL6 and PC connection cable No. 1CNL7 permit uploading programs from a PC, directly to multiple relays. Use for small machinery and supplemental large machinery automation systems, lighting management, security systems management, and HVAC management.

Technical Specifications

• Item Extension Module
• For Use With SR3B Logic Relays
• Includes Instruction Manual
• Number of Inputs 4
• Number of Outputs 2
• Power Required 24V AC
• Features Checks program memory on each power up; 8 A for all 2 outputs (relay output)

Manufacturer Details

• Manufacturer: Schneider
• Condensed Mfg Number: SR3XT61B
• MPN: SR3XT61B

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: FR
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8536490080
• GDS Category Name: PLC Extension and Interface Modules
• GDS Family Name: Programmable Logic Controllers (PLC)
• GDS Segment Name: Electrical
• UNSPSC: 39121514
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Switches and controls and relays and accessories
• UNSPSC Commodity ID: 14
• UNSPSC Commodity Name: Power relays
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

• Not For Sale In: HI AK PR
