NEMA Overload Relay 48 to 45A 3P MPN:9065SDO8
SKU
226-CXG-2FK25

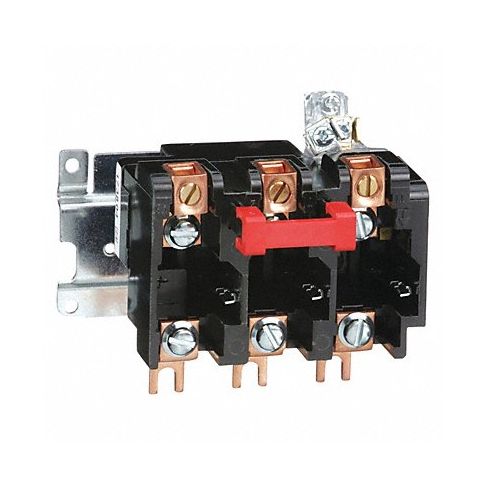

NEMA Overload Relay 48 to 45A 3P
Protect your motor starters with our NEMA Overload Relay 48 to 45A 3P from Schneider Electric. Designed for use with Nema motors, this overload relay helps adjust the maximum current the motor is allowed to draw before the starter shuts down. Featuring a thermal unit that determines its trip class, it enables easy selection of the right protection level for your motor. Made to work with Class 8536 starters, it offers versatility and reliability in various applications such as industrial and commercial machinery, pumps, compressors, conveyors, and fans. Upgrade your motor starter today with our high-quality overload relay for optimal performance!
Top product features:
- NEMA motor starter compatibility
- Versatile overload relay current range (45 to 48A)
- Selectable trip class for customizable protection level
Top product applications:
- Controlling and protecting motors in manufacturing facilities
- Protecting pumps in water treatment plants
- Regulating equipment in agricultural settings
This overload relay is designed for use with NEMA motor starters. It can help adjust the maximum current the motor is allowed to draw before the starters shut the motor down.
Technical Specifications
- Item - Relay NEMA Style Overload Relay
- Use With - Contactors and Starters Mfr. Class 8536 Starters
- NEMA Size 2
- Overload Relay Current Range 45 to 48A
- Trip Class - Overload Determined by Thermal Units Selected
- Thermal Units Required Yes
- Sensing Method Thermal
- Reset Type - Relay No Reset
- Number of Poles 3
- Body Height - Relay 4.06 in
- Body Width - Relay 4.28 in
- Body Depth - Relay 4.0 in
- Overall Height - Relay 4.06 in
- Voltage 600V AC
Manufacturer Details
- Manufacturer: Schneider
- Condensed Mfg Number: 9065SDO8
- MPN: 9065SDO8
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536490080
- GDS Category Name: NEMA Overload Relays
- GDS Family Name: Starters and Contactors
- GDS Segment Name: Electrical
- UNSPSC: 39121520
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 20
- UNSPSC Commodity Name: Overload relays
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B000E20L94
