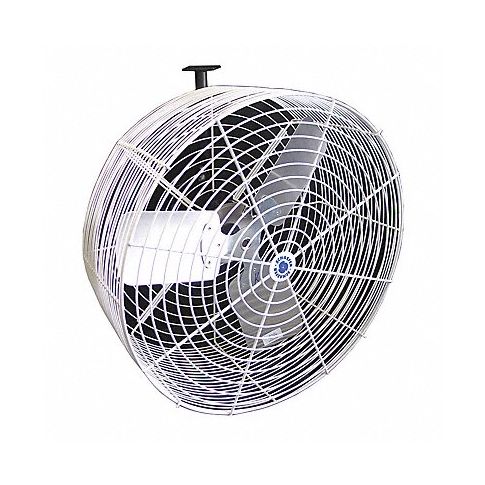

Stndrd Dty Indstrl Fan 24 Blde Dia MPN:GVK24

Standard-duty industrial wall-mount fans cool heavy manufacturing areas and other dusty or dirty environments where floor space is limited. Compared to light-duty industrial fans, these standard-duty fans are made of heavier-gauge materials, have a higher-horsepower motor that is totally enclosed to keep out debris, and feature more-robust motor bearings for a longer life.

Industrial wall-mount fans attach to a wall, ceiling, or beam so they won't take up floor space, block traffic flow, or create a tripping hazard. These air circulators are often used for cooling people, machinery, and products in aisles, tight spaces, and busy areas of manufacturing plants, warehouses, and shipping operations. Made of heavy-gauge materials suitable for daily use, these axial fans have a powerful motor that drives the fan blades to move large volumes of air and feature high-performance bearings for a long life. A guard encloses the fan blades to help protect them from damage and prevent injuries from accidental contact.

Technical Specifications

• Item Standard-Duty Industrial Fan
• Blade Diameter 24 in
• Wheeled Base Stationary
• Oscillation Non-Oscillating
• Watts 397
• Number of Speeds Variable
• Voltage 115/230V AC
• Phase 1
• Air Flow 7860 cfm
• Motor HP 1/2 hp
• RPM 1725
• Amps 4.8/2.4
• Fan Mounting Location Wall
• Assembly Required No
• Max. Ambient Temp. 104 Degrees F
• Hz 60
• Motor Enclosure Totally Enclosed Air-Over
• Motor Insulation Class B
• Motor Type Permanent Split Capacitor
• Thermal Protection Auto
• Bearing Type Ball
• Fan Cord Length 5 ft
• NEMA Plug Configuration 5-15P
• Height 27 in
• Width 27 in
• Depth 15 1/2 in
• Number of Blades 3
• Blade Material Aluminum
• Shaft Dia. 5/8 in
• Fan Housing Material Steel
• Guard Material Galvanized Steel
• Wire Guard Finish White Powder Coated
• Number of Conductors 3
• Drive Type Direct
• Includes Wall Mount Bracket
• Environmental Applications Industrial

Manufacturer Details

• Manufacturer: Schaefer
• Condensed Mfg Number: GVK24
• MPN: GVK24

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8414596595
• GDS Category Name: Industrial Fans
• GDS Family Name: Cooling Fans and Air Circulators
• GDS Segment Name: HVAC and Refrigeration
• UNSPSC: 40101602
• UNSPSC Class ID: 16
• UNSPSC Commodity Name: Air circulation and parts and accessories
• UNSPSC Commodity ID: 02
• UNSPSC Commodity Name: Air circulators
• UNSPSC Family ID: 10
• UNSPSC Family Name: Heating and ventilation and air circulation
• UNSPSC Segment ID: 40
• UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components

Shipping Details

• Not For Sale In: HI AK PR
