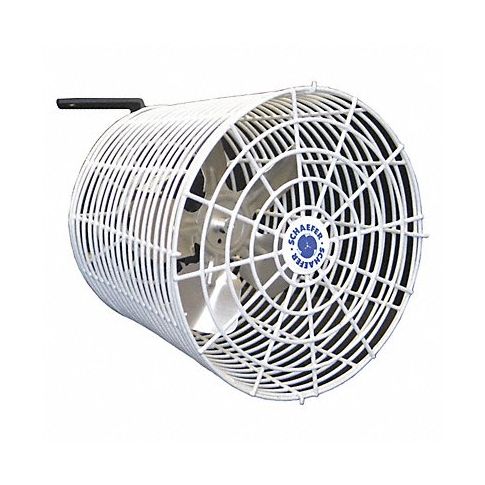

Stndrd Dty Indstrl Fan 8 Blde Dia 1Spd MPN:VK8
Standard Duty Industrial Fan 8 Blade Diameter One Speed is a robust fan designed to tackle demanding applications spanning diverse sectors ranging from factories and warehouses to laboratories and workshops. The robust motor delivers high performance levels with minimal energy consumption courtesy of its cost-effective single speed operation. With the capacity to ventilate large areas, this fan works excellently for temperature regulation, pollutant elimination, or odor control within confined spaces. Its user-friendly design requires minimal maintenance courtesy of a convenient top-mounted rocker switch coupled with long-lasting materials ideal for tough work environments; catering to facility managers seeking hassle-free air movement solutions in an economic package while maximizing reliability and performance.
Technical Specifications
- Item Standard-Duty Industrial Fan
- Blade Diameter 8 in
- Wheeled Base Stationary
- Oscillation Non-Oscillating
- Watts 50
- Number of Speeds 1
- Voltage 115V AC
- Phase 1
- Air Flow 450 cfm
- Motor HP 1/100 hp
- RPM 1550
- Amps 0.6
- Fan Mounting Location Wall
- Assembly Required No
- Max. Ambient Temp. 104 Degrees F
- Hz 60
- Motor Enclosure Totally Enclosed Air-Over
- Motor Insulation Class B
- Motor Type Permanent Split Capacitor
- Thermal Protection Auto
- Bearing Type Sleeve
- Fan Cord Length 5 ft
- NEMA Plug Configuration 5-15P
- Height 11 in
- Width 11 in
- Depth 10 in
- Number of Blades 5
- Blade Material Aluminum
- Shaft Dia. 1/4 in
- Fan Housing Material Steel
- Guard Material Galvanized Steel
- Wire Guard Finish White Powder Coated
- Number of Conductors 3
- Drive Type Direct
- Standards AMCA 230
- Includes Wall Mount Bracket
- Environmental Applications Industrial
Manufacturer Details
- Manufacturer: Schaefer
- Condensed Mfg Number: VK8
- MPN: VK8
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8414519090
- GDS Category Name: Industrial Fans
- GDS Family Name: Cooling Fans and Air Circulators
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40101602
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Air circulation and parts and accessories
- UNSPSC Commodity ID: 02
- UNSPSC Commodity Name: Air circulators
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
