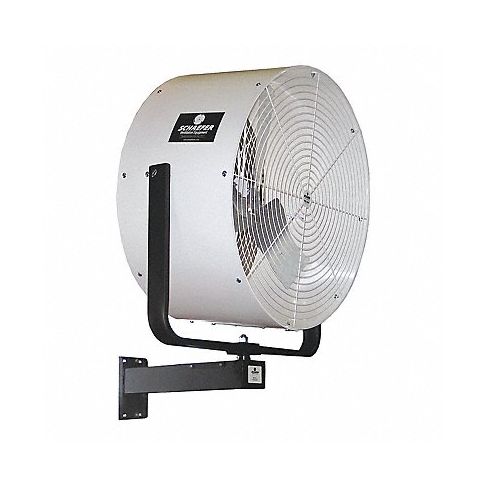

Stndrd Dty Indstrl Fan 36 Blde Dia 1Spd MPN:VKWO36

Standard-duty industrial wall-mount fans cool heavy manufacturing areas and other dusty or dirty environments where floor space is limited. Compared to light-duty industrial fans, these standard-duty fans are made of heavier-gauge materials, have a higher-horsepower motor that is totally enclosed to keep out debris, and feature more-robust motor bearings for a longer life.

Industrial wall-mount fans attach to a wall, ceiling, or beam so they won't take up floor space, block traffic flow, or create a tripping hazard. These air circulators are often used for cooling people, machinery, and products in aisles, tight spaces, and busy areas of manufacturing plants, warehouses, and shipping operations. Made of heavy-gauge materials suitable for daily use, these axial fans have a powerful motor that drives the fan blades to move large volumes of air and feature high-performance bearings for a long life. A guard encloses the fan blades to help protect them from damage and prevent injuries from accidental contact.

Technical Specifications

• Item Standard-Duty Industrial Fan
• Blade Diameter 36 in
• Wheeled Base Stationary
• Oscillation Oscillating
• Watts 540
• Number of Speeds 1
• Voltage 115/230V AC
• Phase 1
• Air Flow 11,690 cfm
• Motor HP 1/2 hp
• RPM 825
• Amps 7/3.5
• Fan Mounting Location Wall
• Air Velocity @ 20 Ft. 500
• Assembly Required Yes
• Max. Ambient Temp. 104 Degrees F
• Hz 60
• Motor Enclosure Totally Enclosed Air-Over
• Motor Insulation Class F
• Motor Type Permanent Split Capacitor
• Thermal Protection Auto
• Bearing Type Sealed Ball
• Fan Cord Length 5 ft
• NEMA Plug Configuration 5-15P
• Height 60 7/8 in
• Width 40 1/4 in
• Depth 33 1/4 in
• Number of Blades 3
• Blade Material Galvanized Steel
• Shaft Dia. 5/8 in
• Fan Housing Material Polyethylene
• Guard Material Steel
• Wire Guard Finish White Powder Coated
• Number of Conductors 3
• Drive Type Direct
• Standards UL Motor
• Includes Wall Mount Bracket
• Environmental Applications Industrial

Manufacturer Details

• Manufacturer: Schaefer
• Condensed Mfg Number: VKWO36
• MPN: VKWO36

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8414596595
• GDS Category Name: Industrial Fans
• GDS Family Name: Cooling Fans and Air Circulators
• GDS Segment Name: HVAC and Refrigeration
• UNSPSC: 40101602
• UNSPSC Class ID: 16
• UNSPSC Commodity Name: Air circulation and parts and accessories
• UNSPSC Commodity ID: 02
• UNSPSC Commodity Name: Air circulators
• UNSPSC Family ID: 10
• UNSPSC Family Name: Heating and ventilation and air circulation
• UNSPSC Segment ID: 40
• UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components

Shipping Details

• Not For Sale In: HI AK PR
