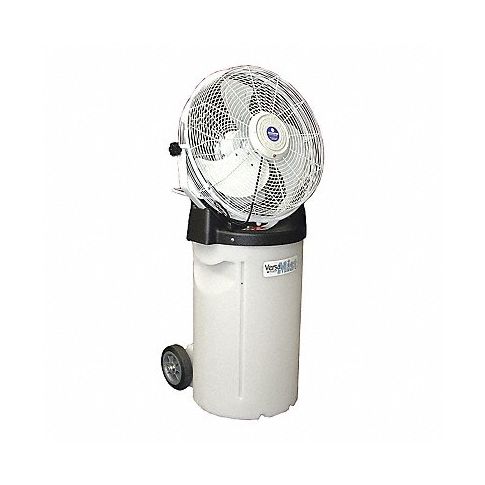

Indstrl Misting Fan 18 Blde Dia 3Spd MPN:PVM18C

Industrial pedestal misting fans feature a misting hub that connects to a water source for adding moisture to the air for rapid cooling. They're used to supply a cooling mist that helps people avoid heat stress at amusement parks and other hot locations where water won't cause a slipping hazard or damage surrounding areas or equipment. These air circulators have a totally enclosed motor to keep out water and debris.

Industrial pedestal fans have a heavy base and an adjustable-height post, so they can be placed on the floor and directed onto workspaces, machinery, or products. The pedestal base provides stable footing while allowing fans to be moved as needed. The post can be raised or lowered to set the fan head at an optimal height. These air circulators (sometimes called industrial shop fans) are commonly used for cooling in manufacturing plants, warehouses, and shipping operations. Made of heavy-gauge materials suitable for daily use, these axial fans have a powerful motor that drives the fan blades to move large volumes of air and feature high-performance bearings for a long life. A guard encloses the fan blades to help protect them from damage and prevent injuries from accidental contact.

Technical Specifications

• Item Industrial Misting Fan
• Blade Diameter 18 in
• Wheeled Base Mobile
• Oscillation Non-Oscillating
• Watts 130
• Number of Speeds 3
• Voltage 115V AC
• Phase 1
• Air Flow 1400/1800/2200 cfm
• Motor HP 1/10 hp
• RPM 1000/1400/1570
• Amps 1.5/1.3/1
• Fan Mounting Location Pedestal
• Air Velocity @ 20 Ft. 190/270/310
• Assembly Required Yes
• Sound Level 60/52 dBA
• Max. Ambient Temp. 107 Degrees F
• Hz 60
• Motor Enclosure Totally Enclosed Air-Over
• Motor Insulation Class A
• Motor Type Permanent Split Capacitor
• Thermal Protection Auto
• Bearing Type Sealed Ball
• Fan Cord Length 25 ft
• NEMA Plug Configuration 5-15P with GFCI
• Height Adj 53 to 72 in
• Width 24 in
• Depth 26 1/2 in
• Number of Blades 3
• Blade Material Steel
• Shaft Dia. 1/2 in
• Fan Housing Material Steel
• Guard Material Steel
• Wire Guard Finish White Powder Coated
• Number of Conductors 3
• Height Adjustment 53 to 72 in
• Drive Type Direct
• Standards OSHA Guard, UL507 Motor
• Includes (1) Extra Nozzle, (2) Plugs, 14 gal Tank, 7 hr Run Time, 8 in Rubber Casters, High Pressure Water Pump, Power Cut Off Tip Switch
• Environmental Applications Industrial

Manufacturer Details

• Manufacturer: Schaefer
• Condensed Mfg Number: PVM18C
• MPN: PVM18C

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: CN
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8414510090
• GDS Category Name: Industrial Fans
• GDS Family Name: Cooling Fans and Air Circulators
• GDS Segment Name: HVAC and Refrigeration
• UNSPSC: 40101602
• UNSPSC Class ID: 16
• UNSPSC Commodity Name: Air circulation and parts and accessories
• UNSPSC Commodity ID: 02
• UNSPSC Commodity Name: Air circulators
• UNSPSC Family ID: 10
• UNSPSC Family Name: Heating and ventilation and air circulation
• UNSPSC Segment ID: 40
• UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components

Shipping Details

• Not For Sale In: HI AK PR
