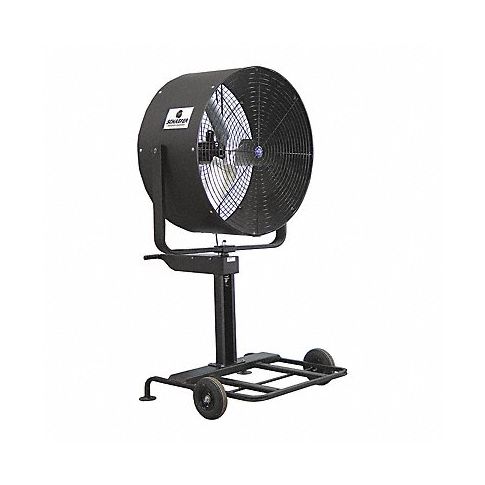

Stndrd Dty Indstrl Fan 36 Blde Dia 1Spd MPN:VKO36-B-O
Keep your workspace cool and dust-free with Schaefer's Standard-Duty Industrial Fan, designed for heavy-duty use in manufacturing plants, warehouses, and shipping operations. With a blade diameter of 36 inches, this powerful fan delivers high-volume air circulation that reaches even the toughest to reach areas. Constructed from durable, heavy-gauge materials, this industrial pedestal fan can withstand daily use and harsh environments while providing reliable cooling for years to come. The adjustable height post allows you to position the fan precisely where it's needed, while the sturdy base ensures stability and easy movement. With a guard protecting the blades and high-performance bearings for a long lifespan, Schaefer's Industrial Fan is an investment worth making for your business or facility. Improve productivity, comfort, and safety with this reliable fan that delivers consistent cooling in even the most demanding conditions.
Top product features:
- Adjustable height post for precision cooling
- Heavy-duty materials for durability and longevity
- High-performance bearings for extended lifespan
Top product applications:
- Cooling heavy manufacturing areas to maintain worker comfort and prevent heat stress
- Maintaining optimal temperatures in warehouses to preserve products from spoilage or damage
- Dust control and ventilation in shipping operations to keep materials clean and safe for handling
Technical Specifications
- Item Standard-Duty Industrial Fan
- Blade Diameter 36 in
- Wheeled Base Mobile
- Oscillation Oscillating
- Watts 450
- Number of Speeds 1
- Voltage 115/230V AC
- Phase 1
- Air Flow 11,700 cfm
- Motor HP 1/2 hp
- RPM 825
- Amps 7/3.5
- Fan Mounting Location Pedestal
- Air Velocity @ 20 Ft. 350
- Assembly Required Yes
- Max. Ambient Temp. 104 Degrees F
- Hz 60
- Motor Enclosure Totally Enclosed Air-Over
- Motor Insulation Class F
- Motor Type Permanent Split Capacitor
- Thermal Protection Auto
- Bearing Type Sealed Ball
- Fan Cord Length 5 ft
- NEMA Plug Configuration 5-15P
- Height 75 in
- Width 42 in
- Depth 45 in
- Number of Blades 3
- Blade Material Steel
- Shaft Dia. 5/8 in
- Fan Housing Material Polyethylene
- Guard Material Steel
- Wire Guard Finish Black Powder Coated
- Number of Conductors 3
- Drive Type Direct
- Standards OSHA Guard, UL Motor
- Includes Heavy Duty Mobile Cart w/8 in Pneumatic Casters
- Environmental Applications Industrial
Manufacturer Details
- Manufacturer: Schaefer
- Condensed Mfg Number: VKO36BO
- MPN: VKO36-B-O
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8414596595
- GDS Category Name: Industrial Fans
- GDS Family Name: Cooling Fans and Air Circulators
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40101602
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Air circulation and parts and accessories
- UNSPSC Commodity ID: 02
- UNSPSC Commodity Name: Air circulators
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
