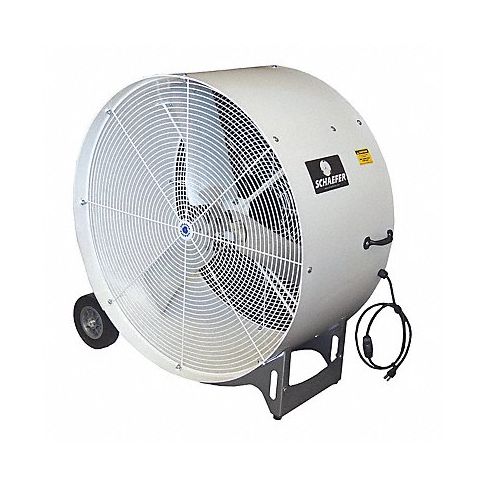

Stndrd Dty Indstrl Fan 36 Blde Dia 2Spd MPN:VKM36-2-O
Stndrd Dty Indstrl Fan 36 Blde Dia 2Spd is a versatile industrial fan known for its energy-saving capabilities and ability to provide consistent performance, even when faced with harsh environments. This powerful piece of machinery is suitable for use in manufacturing plants, commercial spaces or agricultural facilities, where it provides efficient cooling solutions; its two-speed design allowing users to regulate air flow as needed while maintaining its quiet and smooth operation. Its blades are made from corrosion resistant steel ensuring durability and longevity, and coupled with a steel housing constructed to handle heavy duty work loads in varying temperature levels, this fan delivers the perfect combination of toughness and endurance that businesses look for when it comes to industrial applications. Thanks to its sturdy design and reliable functionality, this standard duty fan has become a preferred choice among professionals looking for an effective way to cool down large areas with ease.
Technical Specifications
- Item Standard-Duty Industrial Fan
- Blade Diameter 36 in
- Wheeled Base Mobile
- Oscillation Non-Oscillating
- Watts 485/328
- Number of Speeds 2
- Voltage 115V AC
- Phase 1
- Air Flow 10,900/16,600 cfm
- Motor HP 1/2 hp
- RPM 1075/850
- Amps 5.2/3.5
- Fan Mounting Location Floor
- Air Velocity @ 10 Ft. 725/525
- Air Velocity @ 20 Ft. 600/450
- Air Velocity @ 40 Ft. 400/225
- Assembly Required No
- Sound Level 77 dBA
- Max. Ambient Temp. 104 Degrees F
- Hz 60
- Motor Enclosure Totally Enclosed Air-Over
- Motor Insulation Class B
- Motor Type Permanent Split Capacitor
- Thermal Protection Auto
- Bearing Type Ball, Permanently Lubricated and Sealed
- Fan Cord Length 12 ft
- Height 39 3/4 in
- Width 40 3/4 in
- Depth 19 3/4 in
- Number of Blades 3
- Blade Material Aluminum
- Shaft Dia. 1/2 in
- Fan Housing Material Polyethylene
- Guard Material Steel
- Wire Guard Finish Gloss White Powder Coated
- Drive Type Direct
- Standards OSHA Compliant Wire Guards
- Includes Stacking Tabs
- Environmental Applications Industrial
Manufacturer Details
- Manufacturer: Schaefer
- Condensed Mfg Number: VKM362O
- MPN: VKM36-2-O
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8414596595
- GDS Category Name: Industrial Fans
- GDS Family Name: Cooling Fans and Air Circulators
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40101602
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Air circulation and parts and accessories
- UNSPSC Commodity ID: 02
- UNSPSC Commodity Name: Air circulators
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
