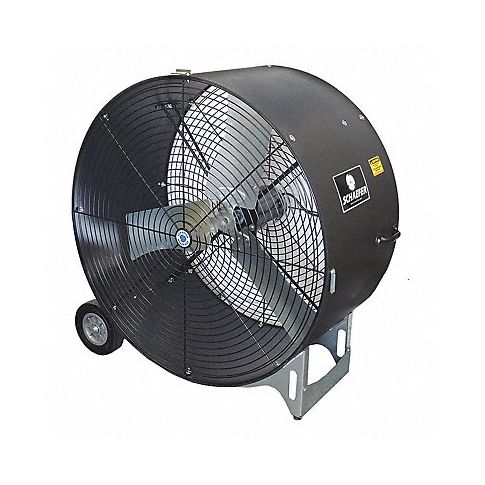

Stndrd Dty Indstrl Fan 36 Blde Dia 2Spd MPN:VKM36-2-B-O
This industrial fan boasts a standard duty design with a 36-inch blade diameter and is built for tough applications such as manufacturing facilities or warehouses where strong air movement is essential to cool and ventilate the environment. Equipped with two speeds, this energy-efficient fan delivers an impressive 14,029 CFM of airflow at the lowest speed setting while only consuming 3.3 amps of electricity and operating at a mere 85db sound level. It also features aluminum blades that are powder-coated for durability against corrosion and long-lasting performance while its 16-gauge steel housing ensures superior strength in resisting damage from impacts. The adjustable mounting features allow easy installation at any desired angle to accommodate various ceiling heights, making this industrial fan a reliable choice for its ease of use, versatility, and cost savings in energy consumption.
Technical Specifications
- Item Standard-Duty Industrial Fan
- Blade Diameter 36 in
- Wheeled Base Mobile
- Oscillation Non-Oscillating
- Watts 485/328
- Number of Speeds 2
- Voltage 115V AC
- Phase 1
- Air Flow 10,900/16,600 cfm
- Motor HP 1/2 hp
- RPM 1075/850
- Amps 5.2/3.5
- Fan Mounting Location Floor
- Air Velocity @ 10 Ft. 725/525
- Air Velocity @ 20 Ft. 600/450
- Air Velocity @ 40 Ft. 400/225
- Assembly Required No
- Sound Level 77 dBA
- Max. Ambient Temp. 104 Degrees F
- Hz 60
- Motor Enclosure Totally Enclosed Air-Over
- Motor Insulation Class B
- Motor Type Permanent Split Capacitor
- Thermal Protection Auto
- Bearing Type Ball, Permanently Lubricated and Sealed
- Fan Cord Length 12 ft
- Height 39 3/4 in
- Width 40 3/4 in
- Depth 19 3/4 in
- Number of Blades 3
- Blade Material Aluminum
- Shaft Dia. 1/2 in
- Fan Housing Material Polyethylene
- Guard Material Steel
- Wire Guard Finish Gloss Black Powder Coated
- Drive Type Direct
- Standards OSHA Compliant Wire Guards
- Includes Stacking Tabs
- Environmental Applications Industrial
Manufacturer Details
- Manufacturer: Schaefer
- Condensed Mfg Number: VKM362BO
- MPN: VKM36-2-B-O
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8414596595
- GDS Category Name: Industrial Fans
- GDS Family Name: Cooling Fans and Air Circulators
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40101602
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Air circulation and parts and accessories
- UNSPSC Commodity ID: 02
- UNSPSC Commodity Name: Air circulators
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
