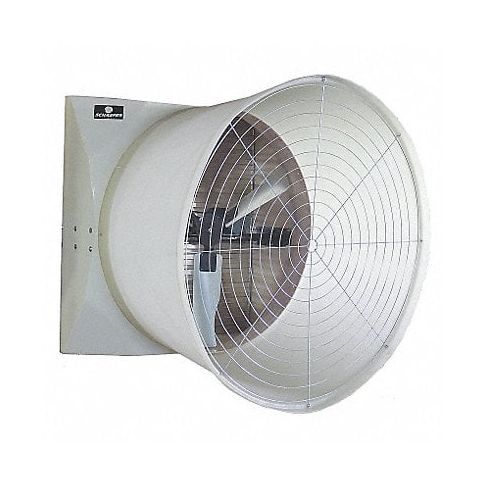

Agr ExhFn 57In Bl Gal Steel 208-230/460V MPN:573CF112G-3-HV

This 57" belt-drive exhaust fan features 3 galvanized steel blades, a 1-pc. molded fiberglass narrow-profile housing, and heavy-duty aluminum shutters. The rugged, UV-protected, heavy-duty polyethylene cone can be installed in the field. Shipped with motor, belt, and automatic belt tensioner.

Technical Specifications

• Item Agricultural Exhaust Fan
• Type Cone, Belt Drive
• Propeller Dia. (In.) 57 in
• CFM @ 0.000-In. SP 33,500
• CFM @ 0.050-In. SP 31,500
• CFM @ 0.100-In. SP 29,600
• CFM @ 0.150-In. SP 27,400
• CFM/Watt @ 0.000-In. SP 23.0
• CFM/Watt @ 0.050-In. SP 20.8
• CFM/Watt @ 0.100-In. SP 18.9
• CFM/Watt @ 0.150-In. SP 17.1
• Fan RPM 557
• Voltage 208-230/460
• Hz 60
• Phase 3
• Full Load Amps 4.6-4.8/2.4
• Watts 1,565 W
• HP 1 1/2 hp
• Motor RPM 1750
• Motor Type Energy Efficient
• Motor Enclosure Totally Enclosed Nonventilated
• Motor Insulation Class F
• Height (In.) 67 1/2 in
• Width (In.) 67 1/2 in
• Max. Depth (In.) 62 3/4 in
• Opening Required H (In.) 62 1/2 in
• Opening Required W (In.) 62 1/2 in
• Flange Width (In.) 3 in
• Venturi Clearance Dia. (In.) 57 5/8 in
• Venturi Depth (In.) 28 in
• Cone Dia. (In.) 67 3/8 in
• Cone Depth (In.) 34 3/4 in
• Mounting Location Wall
• Max. Ambient Temp. (F) 104 Degrees F
• Shaft Dia. (In.) 1 in
• Bearing Type Self-Aligning Pillow Block
• Number of Blades 3
• Propeller Material Galvanized Steel
• Frame Material Fiberglass
• Frame Finish Gel Coat
• Mesh Size 2-1/2 in
• Free Area (Square-Ft.) 21

Manufacturer Details

• Manufacturer: Schaefer
• Condensed Mfg Number: 573CF112G3HV
• MPN: 573CF112G-3-HV

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8414596595
• GDS Category Name: Axial Exhaust and Supply Fans with Motor
• GDS Family Name: Exhaust Fans
• GDS Segment Name: HVAC and Refrigeration
• UNSPSC: 40101502
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Ventilation
• UNSPSC Commodity ID: 02
• UNSPSC Commodity Name: Air exhausters
• UNSPSC Family ID: 10
• UNSPSC Family Name: Heating and ventilation and air circulation
• UNSPSC Segment ID: 40
• UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components

Shipping Details

• Not For Sale In: HI AK PR
