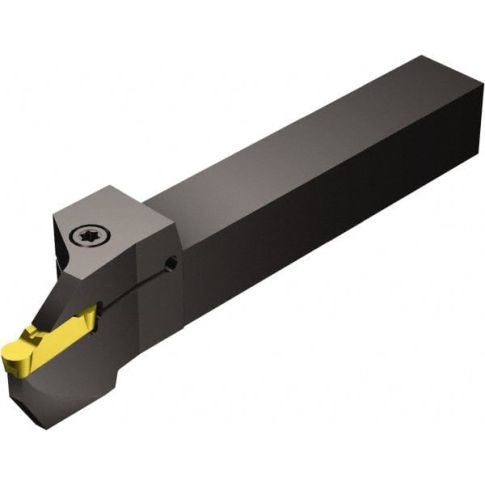

Indexable Profiling Toolholder: MPN:5734834
Indexable Profiling Toolholder:
Indexable Profiling Toolholder: 1.2598 x 1.2598" Shank, 7.4803" OAL, Uses N123L2-0800-RM, Series CoroCut 1-2
Product Information
- : 5734834
- Back of Bar to Cutting Edge (Decimal Inch): 1.5748
- Back of Bar to Cutting Edge (mm): 40.00
- Compatible Insert Size Code: N123L2-0800-RM
- Complete Insert Compatibility: N123L2-0800- RM
- Coolant Through: No
- Hand of Holder: Left Hand
- Head Length (Decimal Inch): 2.5079
- Head Length (mm): 63.70
- Insert Holding Method: Screw
- Overall Length (Decimal Inch): 7.4803
- Overall Length (mm): 190.00
- Rake: Neutral
- Rake Angle: 0
- Series: CoroCut 1-2
- Shank Height (Decimal Inch): 1.2598
- Shank Height (mm): 32.00
- Shank Width/Diameter (Decimal Inch): 1.2598
- Shank Width/Diameter (mm): 32.00
- Toolholder Material: Steel
- Toolholder Style: R/LX123.. B-007
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: No
- Country of Origin: IN, India
- TAA Compliant: No
- UNSPSC: 23153308
- CA Restricted (Prop 65): Unknown
- Package Length: 8.50
- Package Width: 2.36
- Package Height: 2.36
- Package Weight: 3.21
- Prohibited States: AK,HI,PR
Product info last updated on April 1, 2025 12:13am UTC
Category: Indexable Turning and Profiling
