Coupling, 6 Beam Set Screw, 3/8in.x 3/8in. MPN:FSR24-6-6-A
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8448623

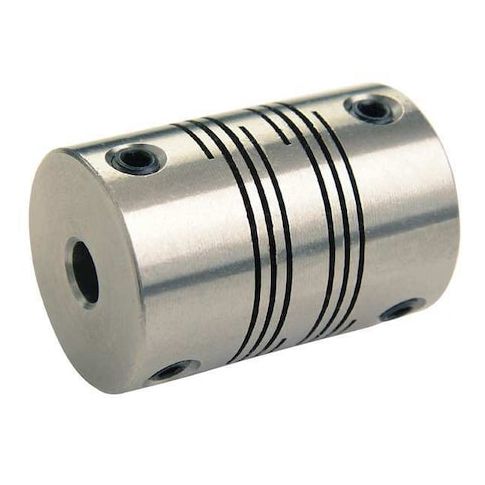

Coupling, 6 Beam Set Screw, 3/8in.x 3/8in.
The RULAND 6 Beam Set Screw Coupling is a high-performance motion control solution ideal for applications requiring precise angular misalignment and high torque transmission. With a maximum speed of 6,000 RPM and maximum torque of 120 in-lb, this coupling is suitable for demanding industrial applications such as robotics, medical devices, and precision machinery. Its aluminum construction and set screw shaft locking provide a secure and reliable connection, while its compact design and low axial motion make it an excellent choice for space-constrained systems. Suitable for use in a variety of industries, including aerospace, automotive, and medical.
Top product features:
- Angular misalignment up to 3 degrees
- Shaft locking is achieved through a set screw mechanism
- Torsional stiffness is 45.45 in-lb/Deg
Top product applications:
- High precision machinery assembly
- Robotics and automation systems
- Precision instrument calibration and testing
Motion Control Coupling, Angular Misalignment 3 Degrees , Bore Diameter 1 3/8 in, Bore Diameter 2 3/8 in, Coupling Material Aluminum, Coupling Outside Diameter 1 1/2 in, Maximum Speed 6,000 RPM, Maximum Torque 120 in-lb, Axial Motion 0.015 in, Overall Length 2 1/4 in, Parallel Misalignment 0.03 in, System of Measurement Inch, Different Bore Sizes No, Torsional Stiffness 45.45 in-lb/Deg, Bore Type Round, Shaft Locking Type Set Screw, Number of Beams 6, Length Through Bore 2 1.1 mm
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 4.00
- Package Height: 1.50
- Package Weight: 1.50
Product info last updated on March 1, 2026 1:40pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
