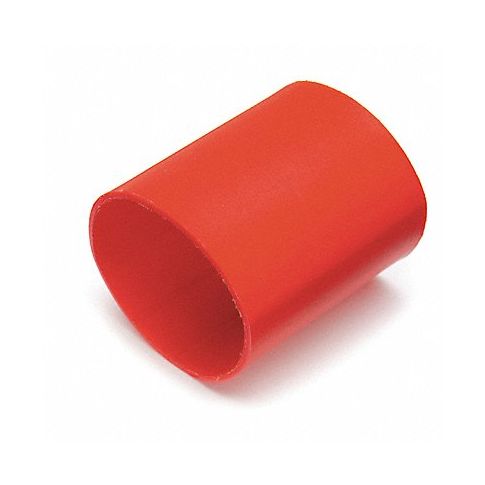

Shrink Tubing 1.5 in Red PK10 MPN:5616-360-010R
Shrink Tubing 1.5 in Red PK10
Shrink tubing with a diameter of 1.5 inches is an indispensable tool for electricians and engineers involved in the installation and maintenance of electronic devices or wires in various applications. Its compact design provides protection from abrasion, moisture, and chemical exposure while its vibrant red color serves as easy identification when working in environments with numerous cables. Its cost-effective nature makes it an optimal solution for diverse industries such as automotive, telecommunications, aerospace, or marine that require temporary insulation during repairs or wiring operations.
This heavy duty adhesive-lined heat shrink tubing provides corrosion resistance and is color-coded, so it's typically used to protect and identify battery connectors. It covers the connectors and is heated to shrink the tubing and seal the adhesive.
Technical Specifications
- Item Heat Shrink Tubing
- Tubing Wall Type Heavy Wall
- Material Cross-Linked Polyolefin with Adhesive
- Tubing Flexibility Flexible
- Flame Retardant No
- Adhesive Lined Yes
- Shrink Ratio 3:1
- Use With Wire Size 1/0 AWG to 250 MCM
- I.D. Before Shrinking 1.13 in
- I.D. After Shrinking 0.38 in
- Wall Thickness After Shrinking 0.13 in
- Length 1.5 in
- Shrink Tubing Properties Abrasion Resistant
- Color Red
- Temp. Range -67 Degrees to 230 Degrees F
- Package Style Individual Pieces
- Min. Shrink Temp. 257 Degrees F
- Dielectric Strength 600 V
- Max. Temp. Rating 230 Degrees F
- Min. Temp. Rating -67 Degrees F
- Features Withstands Severe Mechanical Requirements
- Standards UL 486D
Manufacturer Details
- Manufacturer: QuickCable
- Condensed Mfg Number: 5616360010R
- MPN: 5616-360-010R
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 3926909988
- GDS Category Name: Shrink Tubing
- GDS Family Name: Wire Management
- GDS Segment Name: Electrical
- UNSPSC: 39121409
- UNSPSC Class ID: 14
- UNSPSC Commodity Name: Lugs connectors and terminals
- UNSPSC Commodity ID: 09
- UNSPSC Commodity Name: Wire connectors
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:42am UTC
Category: Wire Management
