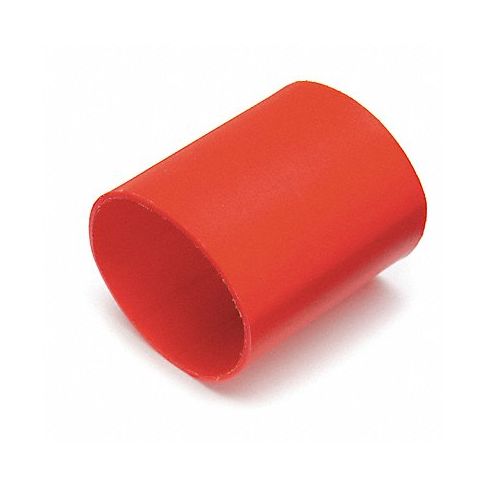

Shrink Tubing 1.5 in Red 0.75 in ID PK10 MPN:5614-360-010R
Ampco's 1.5 red shrink tubing, with a 0.75-inch inner diameter, provides insulation and protection to wires and connections against various environmental factors like chemicals or moisture while ensuring electrical isolation where required. Made from highly flexible LSZH (Low Smoke Zero Halogen) material, this premium tubing offers reliable performance under challenging conditions while preserving wire integrity enabling seamless transfer of signals with zero signal loss making it suitable across electronics industry for cable assembly; power cords or battery connections. With heat-shrink capabilities; Ampco's Shrink Tubing easily conforms to wires or components snuggly resulting in tamperproof sealing ensuring long lasting functionality without impairment ensuring user safety and equipment performance for numerous industries such as Aerospace, Telecommunications or Automotive trades among many others - further establishing Ampco's standing in Cable Management solutions market segments.
Technical Specifications
- Item Heat Shrink Tubing
- Tubing Wall Type Heavy Wall
- Material Cross-Linked Polyolefin with Adhesive
- Tubing Flexibility Flexible
- Flame Retardant No
- Adhesive Lined Yes
- Shrink Ratio 3:1
- Use With Wire Size 4 AWG to 2/0 AWG
- I.D. Before Shrinking 0.75 in
- I.D. After Shrinking 0.25 in
- Wall Thickness After Shrinking 0.13 in
- Length 1.5 in
- Shrink Tubing Properties Abrasion Resistant
- Color Red
- Temp. Range -67 Degrees to 230 Degrees F
- Package Style Individual Pieces
- Min. Shrink Temp. 257 Degrees F
- Dielectric Strength 600 V
- Max. Temp. Rating 230 Degrees F
- Min. Temp. Rating -67 Degrees F
- Features Withstands Severe Mechanical Requirements
- Standards UL 486D
Manufacturer Details
- Manufacturer: QuickCable
- Condensed Mfg Number: 5614360010R
- MPN: 5614-360-010R
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 3926909988
- GDS Category Name: Shrink Tubing
- GDS Family Name: Wire Management
- GDS Segment Name: Electrical
- UNSPSC: 39121409
- UNSPSC Class ID: 14
- UNSPSC Commodity Name: Lugs connectors and terminals
- UNSPSC Commodity ID: 09
- UNSPSC Commodity Name: Wire connectors
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
