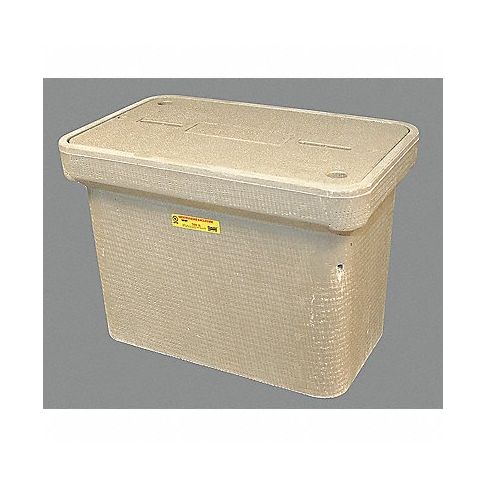

Undrground Enclosure 22 000 lb 21-1/4 L MPN:PG1324Z80617

Featuring Quazite® precast polymer concrete construction, with an open bottom for water drainage, this underground enclosure is designed for sidewalk, ground, grass, and nondeliberate-traffic applications. It provides safe, cost-effective access to underground services such as electric, water, gas, fiber optics, and traffic signals. Corrosion resistant, nonflammable, and nonconductive, the lightweight material is stable under freeze/thaw conditions. Call 1-800-GRAINGER (472-4643) for additional sizes and logos.

Technical Specifications

• Item Underground Enclosure Assembly
• Style - Underground Enclosure PG
• Cover Logo Electric
• Usable Interior Length 21 1/4 in
• Usable Interior Width 15 1/2 in
• Usable Interior Height 16 in
• Overall Length 25 in
• Overall Width 15 1/2 in
• Overall Height 18 in
• Cover Bolt Type 2 Stainless Steel Hex Head Bolts 3/8-16 x 2 3/4 UNC
• Load Rating - Underground Enclosure 22,000 lb
• Cover Pull Slot Size 1/2 in x 4 in
• Color Gray
• Material - Underground Enclosure Monolithic Polymer Concrete
• Description/Special Features Non-Deliberate Traffic Only, Stackable
• Bottom Style - Underground Enclosure Open
• Standards UL listed to ANSI/SCTE 77 2007 Tier 22
• Includes Cover

Manufacturer Details

• Manufacturer: Quazite
• Condensed Mfg Number: PG1324Z80617
• MPN: PG1324Z80617

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 6810990080
• GDS Category Name: Underground Electrical Enclosures
• GDS Family Name: Enclosures
• GDS Segment Name: Electrical
• UNSPSC: 39121301
• UNSPSC Class ID: 13
• UNSPSC Commodity Name: Electrical boxes and enclosures and fittings
• UNSPSC Commodity ID: 01
• UNSPSC Commodity Name: Distribution or control board enclosures
• UNSPSC Family ID: 12
• UNSPSC Family Name: Electrical equipment and components and supplies
• UNSPSC Segment ID: 39
• UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies

Shipping Details

• Not For Sale In: HI AK PR
