Underground Enclosure 8000 lb 11-3/4 W MPN:PG1324Z80117
SKU
226-CXG-4FED4

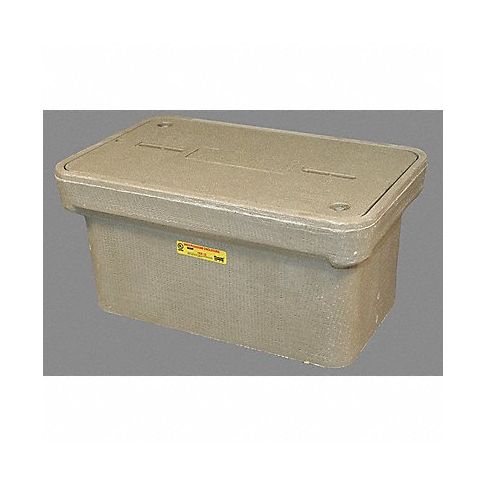

Underground Enclosure 8000 lb 11-3/4 W
Emuge's Underground Enclosure is best suited for utilities companies, oil & gas businesses or any industrial operation where equipment must endure harsh environments and protect from damage caused by weather, vandalism, corrosion while remaining secure and functional. It offers versatility in installation aligning well with various projects' requirements.
Featuring Quazite® precast polymer concrete construction, with an open bottom for water drainage, this underground enclosure is designed for sidewalk, ground, grass, and nondeliberate-traffic applications. It provides safe, cost-effective access to underground services such as electric, water, gas, fiber optics, and traffic signals. Corrosion resistant, nonflammable, and nonconductive, the lightweight material is stable under freeze/thaw conditions. Call 1-800-GRAINGER (472-4643) for additional sizes and logos.
Technical Specifications
- Item Underground Enclosure Assembly
- Style - Underground Enclosure PG
- Cover Logo Electric
- Usable Interior Length 21 1/4 in
- Usable Interior Width 11 3/4 in
- Usable Interior Height 10 in
- Overall Length 25 in
- Overall Width 15 1/2 in
- Overall Height 12 in
- Cover Bolt Type 2 Stainless Steel Hex Head Bolts 3/8-16 x 2 3/4 UNC
- Load Rating - Underground Enclosure 8,000 lb
- Cover Pull Slot Size 1/2 in x 4 in
- Color Gray
- Material - Underground Enclosure Monolithic Polymer Concrete
- Description/Special Features Non-Deliberate Traffic Only, Stackable
- Bottom Style - Underground Enclosure Open
- Standards UL listed to ANSI/SCTE 77 2007 Tier 8
- Includes Cover
Manufacturer Details
- Manufacturer: Quazite
- Condensed Mfg Number: PG1324Z80117
- MPN: PG1324Z80117
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 6810990080
- GDS Category Name: Underground Electrical Enclosures
- GDS Family Name: Enclosures
- GDS Segment Name: Electrical
- UNSPSC: 39121301
- UNSPSC Class ID: 13
- UNSPSC Commodity Name: Electrical boxes and enclosures and fittings
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Distribution or control board enclosures
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 4, 2024 6:44am UTC
Category: Enclosures
