Underground Enclosure 8000 lb 21-1/4 L MPN:PG1324Z80112

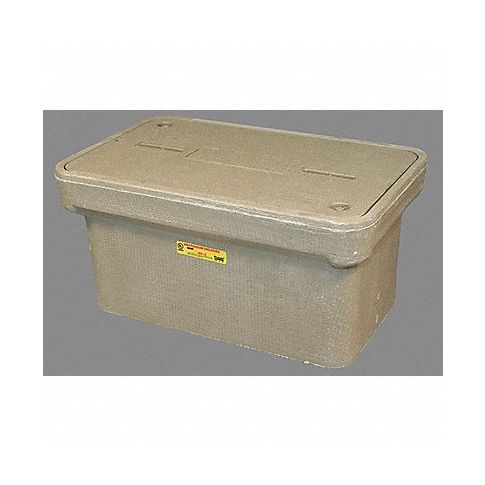

Underground Enclosure 8000 lb 21-1/4 L
Quazite's Underground Enclosure is a versatile and durable solution for protecting and securing underground utilities. With its lightweight construction made from corrosion-resistant Quazite precast polymer concrete, this enclosure provides safe and cost-effective access to electric, water, gas, fiber optics, and traffic signals. The open bottom allows for drainage while maintaining stability during freeze/thaw cycles. Available in different sizes and with a customizable logo, the Underground Enclosure can be used in sidewalk, ground, grass, or nondeliberate-traffic applications. Improve your property's safety and utility access with Quazite's reliable underground enclosure.
Top product features:
- Quazite precast polymer concrete construction for corrosion resistance and durability
- Open bottom design for water drainage
- Customizable logo options for personalized branding or identification
Top product applications:
- Protecting and organizing underground utilities in sidewalk and roadside installations
- Enclosing traffic signal components for safe access and maintenance
- Securing communication cables or lines in grassy or outdoor areas
Featuring Quazite® precast polymer concrete construction, with an open bottom for water drainage, this underground enclosure is designed for sidewalk, ground, grass, and nondeliberate-traffic applications. It provides safe, cost-effective access to underground services such as electric, water, gas, fiber optics, and traffic signals. Corrosion resistant, nonflammable, and nonconductive, the lightweight material is stable under freeze/thaw conditions. Call 1-800-GRAINGER (472-4643) for additional sizes and logos.
Technical Specifications
- Item Underground Enclosure Assembly
- Style - Underground Enclosure PG
- Cover Logo Communications
- Usable Interior Length 21 1/4 in
- Usable Interior Width 11 3/4 in
- Usable Interior Height 10 in
- Overall Length 25 in
- Overall Width 15 1/2 in
- Overall Height 12 in
- Cover Bolt Type 2 Stainless Steel Hex Head Bolts 3/8-16 x 2 3/4 UNC
- Load Rating - Underground Enclosure 8,000 lb
- Cover Pull Slot Size 1/2 in x 4 in
- Color Gray
- Material - Underground Enclosure Monolithic Polymer Concrete
- Description/Special Features Non-Deliberate Traffic Only, Stackable
- Bottom Style - Underground Enclosure Open
- Standards UL listed to ANSI/SCTE 77 2007 Tier 8
- Includes Cover
Manufacturer Details
- Manufacturer: Quazite
- Condensed Mfg Number: PG1324Z80112
- MPN: PG1324Z80112
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 6810990080
- GDS Category Name: Underground Electrical Enclosures
- GDS Family Name: Enclosures
- GDS Segment Name: Electrical
- UNSPSC: 39121301
- UNSPSC Class ID: 13
- UNSPSC Commodity Name: Electrical boxes and enclosures and fittings
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Distribution or control board enclosures
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
