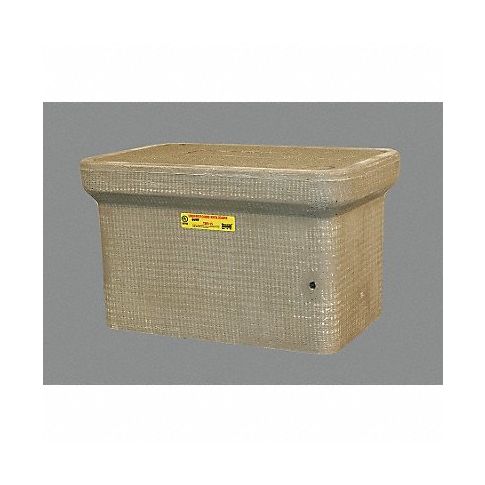

Undrground Enclosure 15 000 lb 10-1/4 H MPN:PG1118Z80209
The Underground Enclosure 15 000 lb 10-1/4 H from Quazite is an essential tool for protecting underground services from the elements while also providing convenient access to electric, water, gas, fiber optic, and traffic signal services. This corrosion-resistant, nonflammable, and nonconductive enclosure is perfect for sidewalk, ground, grass, and nondeliberate-traffic applications, ensuring safe and cost-effective access to underground services. The lightweight precast polymer concrete construction has an open bottom for water drainage, making it ideal for use in freeze/thaw conditions. With sizes available to fit various service needs and easy customization with logos, this Underground Enclosure 15 000 lb 10-1/4 H is a must-have solution for any project requiring underground service access.
Top product features:
- Lightweight construction
- Open bottom for water drainage
- Safe access to underground services
Top product applications:
- Protection of underground services from the elements
- Access to underground services in nondeliberate-traffic areas
- Prevention of water damage to underground services
Technical Specifications
- Item Underground Enclosure Assembly
- Style - Underground Enclosure PG
- Cover Logo Blank
- Usable Interior Length 17 in
- Usable Interior Width 10 1/8 in
- Usable Interior Height 10 1/4 in
- Overall Length 20 1/4 in
- Overall Width 13 3/8 in
- Overall Height 12 in
- Cover Bolt Type 2 Stainless Steel Hex Head Bolts 3/8-16 x 2 1/4 UNC
- Load Rating - Underground Enclosure 15,000 lb
- Cover Pull Slot Size 1/2 in x 2-1/2 in
- Color Gray
- Material - Underground Enclosure Monolithic Polymer Concrete
- Description/Special Features Non-Deliberate Traffic Only, Stackable
- Bottom Style - Underground Enclosure Open
- Standards UL listed to ANSI/SCTE 77 2007 Tier 15
- Includes Cover
Manufacturer Details
- Manufacturer: Quazite
- Condensed Mfg Number: PG1118Z80209
- MPN: PG1118Z80209
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 6810990080
- GDS Category Name: Underground Electrical Enclosures
- GDS Family Name: Enclosures
- GDS Segment Name: Electrical
- UNSPSC: 39121301
- UNSPSC Class ID: 13
- UNSPSC Commodity Name: Electrical boxes and enclosures and fittings
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Distribution or control board enclosures
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
