Underground Enclosure 8000 lb 10-1/8 W MPN:PG1118Z80117
SKU
226-CXG-4FEA4

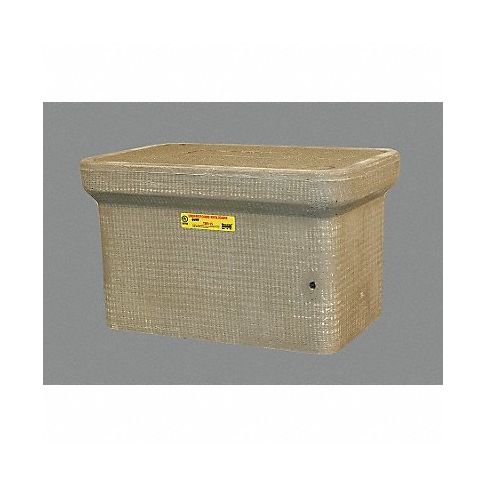

Underground Enclosure 8000 lb 10-1/8 W
Introducing Quazite Precast Polymer Concrete Underground Enclosure - the perfect solution for securing and organizing your underground utilities! This durable and lightweight enclosure is made to withstand harsh weather conditions and can handle up to 8000 lbs. of weight. The open bottom design allows for easy water drainage while providing safe, cost-effective access to electric, water, gas, fiber optics, and traffic signals. Available in multiple sizes, including PG model with Electric cover logo, this enclosure can be used for various applications such as sidewalk, ground, grass, and nondeliberate-traffic areas. Invest in Quazite's high-quality underground enclosures today and keep your utilities safe and organized!
Top product features:
- Made from durable and lightweight Quazite precast polymer concrete material
- Open bottom design allows for easy water drainage
- Safe and cost-effective access to underground utilities such as electric, water, gas, fiber optics, and traffic signals
Top product applications:
- Secure underground wiring for streetlights or traffic lights
- Shield gas lines from damage in high-traffic areas
- Keep cables and connections organized during construction projects
Featuring Quazite® precast polymer concrete construction, with an open bottom for water drainage, this underground enclosure is designed for sidewalk, ground, grass, and nondeliberate-traffic applications. It provides safe, cost-effective access to underground services such as electric, water, gas, fiber optics, and traffic signals. Corrosion resistant, nonflammable, and nonconductive, the lightweight material is stable under freeze/thaw conditions. Call 1-800-GRAINGER (472-4643) for additional sizes and logos.
Technical Specifications
- Item Underground Enclosure Assembly
- Style - Underground Enclosure PG
- Cover Logo Electric
- Usable Interior Length 17 in
- Usable Interior Width 10 1/8 in
- Usable Interior Height 10 1/4 in
- Overall Length 20 1/4 in
- Overall Width 13 3/8 in
- Overall Height 12 in
- Cover Bolt Type 2 Stainless Steel Hex Head Bolts 3/8-16 x 2 1/4 UNC
- Load Rating - Underground Enclosure 8,000 lb
- Cover Pull Slot Size 1/2 in x 2-1/2 in
- Color Gray
- Material - Underground Enclosure Monolithic Polymer Concrete
- Description/Special Features Non-Deliberate Traffic Only, Stackable
- Bottom Style - Underground Enclosure Open
- Standards UL listed to ANSI/SCTE 77 2007 Tier 8
- Includes Cover
Manufacturer Details
- Manufacturer: Quazite
- Condensed Mfg Number: PG1118Z80117
- MPN: PG1118Z80117
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: ZZ
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 6810990080
- GDS Category Name: Underground Electrical Enclosures
- GDS Family Name: Enclosures
- GDS Segment Name: Electrical
- UNSPSC: 39121301
- UNSPSC Class ID: 13
- UNSPSC Commodity Name: Electrical boxes and enclosures and fittings
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Distribution or control board enclosures
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
