Lg Recssd Elct Wl Heatr 18-1/4 H 240V MPN:CWH3504F
SKU
226-CXG-39K913

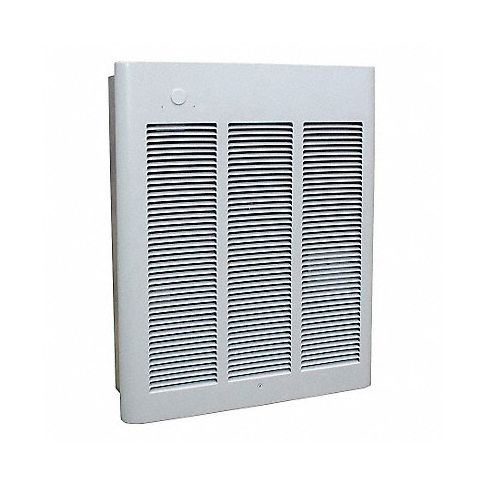

Lg Recssd Elct Wl Heatr 18-1/4 H 240V
This large recessed electric wall heater is perfect for heating offices, reception rooms, family rooms, or small commercial spaces. Its fan-forced design ensures efficient heat distribution, while the built-in thermostat allows precise control of temperature. With a rough-in height of 18-1/4 inches and a width of 14-5/16 inches, this heater is easy to install in standard wall openings. Its compact size and minimalist design make it ideal for use in both residential and commercial settings, while the high voltage capacity ensures efficient heat delivery even in large spaces. Whether you're looking to warm up a cold office or create a cozy atmosphere in your living room, this heater is the perfect solution.
Top product features:
- Large size for increased heat output
- Fan-forced design for efficient heat distribution
- Built-in thermostat for precise temperature control
Top product applications:
- Heating large offices or commercial spaces
- Providing supplementary heating in family rooms
- Warming up outdoor patios or decks during cool weather
Large recessed electric wall heaters are larger than compact and register heaters and are used to heat areas like offices, reception rooms, family rooms, and other residential and small commercial spaces. These fan-forced heaters install in an opening in the wall near the floor so heat flows into the space to be heated. These heaters have a built-in thermostat.
Technical Specifications
- Item Recessed Electric Wall-Mount Heater
- Rough-In Height 18 1/4 in
- Rough-In Width 14 5/16 in
- Rough-In Depth 3 7/8 in
- Voltage 208/240V AC
- Phase 1
- Thermostat Included Unit-Mounted
- Wattage Output 3600W/4800W
- Control Type Mechanical Selector Dial
- Programming Capability Not Programmable
- Smart Connectivity No Connectivity
- Tamper Resistant No
- Thermal Overheat Protection Manual Reset
- Thermostat Contact Type Double Pole
- Occupancy Sensor No
- Hold Function No
- Automatic Fan Delay (On/Off) Yes
- Building Management System Compatible No
- Disconnect Switch Yes
- Fan Only Operation Yes
- Key Features Mechanical Controls, Overheat Protection
- Mounting Type Surface and Recessed
- Setback Control No
- Remote Control Functions No Remote Control Included
- Heating Capacity 12,284/16,378 BtuH
- Heating Method Fan Forced
- Housing Depth 3 3/4 in
- Housing Height 18 1/4 in
- Housing Width 14 5/16 in
- Housing Material Steel
- Grille Depth 7/8 in
- Grille Height 19 5/16 in
- Grille Width 15 3/4 in
- Grille Color White
- Grille Finish Powder Paint
- Grille Material Steel
- Filter Included No
- Wattage Field Convertible Yes
- Air Flow 100 cfm
- Air Temp. Rise 105 Degrees F
- Amperage 17.3A/20A
- Frequency 60 Hz
- Heater Mounting Position Horizontal Burn
- Minimum Mounting Distance from Ceiling 8 in
- Minimum Mounting Height from Floor 8 in
- Includes Built-in Thermal Cutout and Fan Delay Switch
- Standards cETL, UL standard 2021
- Nominal Voltage - HVAC 208V AC, 240V AC
