Lg Recssd Elct Wl Heatr 18-1/4 H 277V MPN:AWH4407F
SKU
226-CXG-39K906

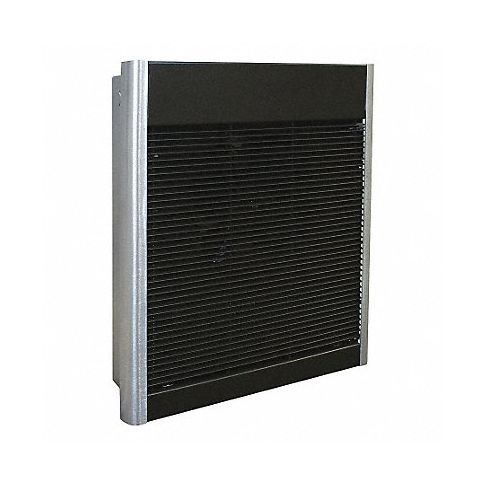

Lg Recssd Elct Wl Heatr 18-1/4 H 277V
Qmark's Large Recessed Electric Wall Heater is an excellent choice for offices, reception rooms, family rooms, and small commercial spaces. With a sleek design and powerful fan-forced heat output, this heater effectively warms the area without taking up valuable floor space. The built-in thermostat ensures energy efficiency and precise temperature control, making it an ideal addition to any setting. Its large size and powerful heating capacity make it perfect for larger rooms or areas that require extra heat. Installation is quick and easy with no assembly required. Choose Qmark's Large Recessed Electric Wall Heater for reliable, efficient heating solutions in your space.
Top product features:
- Large size for powerful heating capacity
- Fan-forced heat output for efficient warming
- Built-in thermostat for precise temperature control
Top product applications:
- Heating large office spaces
- Warming up family rooms
- Providing supplementary heating in commercial spaces
Large recessed electric wall heaters are larger than compact and register heaters and are used to heat areas like offices, reception rooms, family rooms, and other residential and small commercial spaces. These fan-forced heaters install in an opening in the wall near the floor so heat flows into the space to be heated. These heaters have a built-in thermostat.
Technical Specifications
- Item Recessed Electric Wall-Mount Heater
- Rough-In Height 18 1/4 in
- Rough-In Width 14 1/4 in
- Rough-In Depth 3 7/8 in
- Voltage 240/277V AC
- Phase 1
- Thermostat Included Tamper-Resistant Unit-Mounted
- Wattage Output 1500W/3000W, 2000W/4000W
- Control Type Mechanical Selector Dial
- Programming Capability Not Programmable
- Smart Connectivity No Connectivity
- Tamper Resistant Yes
- Thermal Overheat Protection Manual Reset
- Thermostat Contact Type Double Pole
- Occupancy Sensor No
- Hold Function No
- Automatic Fan Delay (On/Off) Yes
- Building Management System Compatible Yes
- Disconnect Switch Yes
- Fan Only Operation No
- Key Features Mechanical Controls, Overheat Protection, Tamper Resistant
- Mounting Type Surface and Recessed
- Setback Control No
- Remote Control Functions No Remote Control Included
- Heating Capacity 5118/6824/10,236/13,649 BtuH
- Heating Method Fan Forced
- Housing Depth 5 1/4 in
- Housing Height 18 1/4 in
- Housing Width 14 3/8 in
- Housing Material Steel
- Grille Depth 1 1/4 in
- Grille Height 19 5/16 in
- Grille Width 15 3/4 in
- Grille Color Bronze
- Grille Finish Powder Paint
- Grille Material Steel
- Filter Included No
- Wattage Field Convertible Yes
- Air Flow 100 cfm
- Air Temp. Rise 105 Degrees F
- Amperage 6.3A/7.2A/12.5A/14.5A
- Frequency 60 Hz
- Heater Mounting Position Horizontal Burn
- Minimum Mounting Distance from Ceiling 8 in
- Minimum Mounting Height from Floor 8 in
- Includes Built-in Thermal Cutout and Fan Delay Switch
- Standards cETL Listed
- Nominal Voltage - HVAC 240V AC, 277V AC
Manufacturer Details
- Manufacturer: Qmark
- Condensed Mfg Number: AWH4407F
- MPN: AWH4407F
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8516290090
- GDS Category Name: Electric Wall Recessed-Mount Heaters
- GDS Family Name: Electric Heaters and Accessories
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40101814
- UNSPSC Class ID: 18
- UNSPSC Commodity Name: Heating equipment and parts and accessories
- UNSPSC Commodity ID: 14
- UNSPSC Commodity Name: Finned tubular heaters
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B006TI7IUC
Product info last updated on July 12, 2025 5:30am UTC Category: Electric Heaters and Accessories
