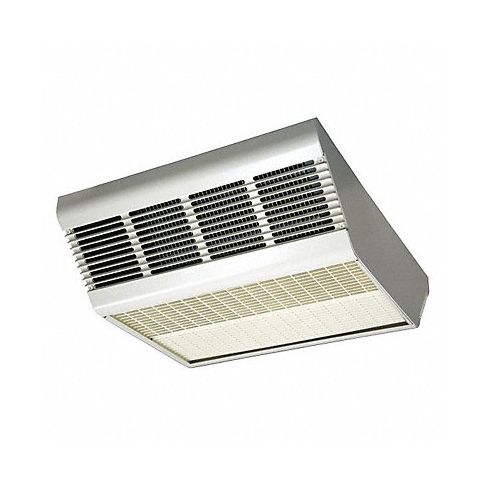

Srfce-Mnt Elct Ceil Htr 2500/3800/5000W MPN:CDF557SE
Free Shipping
In Stock
Qmark surface-mount electric ceiling heaters are designed to provide efficient spot and supplemental heating in limited spaces. They are out of the way, so they do not take up valuable wall or floor space. The fan-forced air makes them ideal for use in offices, conference rooms, lobbies, and bathrooms. They come with an automatic thermal cutout that ensures safety by shutting off the heater if it overheats and turning back on when the temperature returns to normal. These heaters can be used individually or as part of a multi-unit installation for maximum coverage and efficiency. Their compact size and easy installation make them an excellent choice for any facility looking to improve its heating capabilities without taking up valuable space.
Top product features:
- Automatic thermal cutout
- Fan-forced air
- Space-saving design
Top product applications:
- Supplemental heating in small offices or conference rooms
- Space heating in lobbies and waiting areas
- Bathroom heating in hotels or residential buildings
Technical Specifications
- Item Surface-Mount Electric Ceiling Heater
- Overall Height 10 1/2 in
- Overall Width 16 7/16 in
- Overall Depth 5 3/4 in
- Voltage 277V AC
- Phase 1
- Wattage Output 2500W/3800W/5000W
- Heating Method Fan Forced
- Heating Capacity 8500/13,000/17,100 BtuH
- Smart Connectivity No Connectivity
- Thermostat Included No
- Mounting Location Ceiling
- Mounting Type Surface
- Frequency 60 Hz
- Air Flow 300 cfm
- Amperage 9A/13.7A/18.1A
- Air Temp. Rise 42 Degrees F
- Control Type Mechanical Selector Dial
- Housing Color White
- Housing Finish Powder Coated
- Housing Material Steel
- Manufacturers Warranty Length 1 yr Limited, 5 yr Elements
- Standards cULus Listed
Manufacturer Details
- Manufacturer: Qmark
- Condensed Mfg Number: CDF557SE
- MPN: CDF557SE
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8516290090
- GDS Category Name: Electric Wall and Ceiling Surface-Mount Heaters
- GDS Family Name: Electric Heaters and Accessories
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40101821
- UNSPSC Class ID: 18
- UNSPSC Commodity Name: Heating equipment and parts and accessories
- UNSPSC Commodity ID: 21
- UNSPSC Commodity Name: Strip heaters
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
