Sspnd Elct Wl/Ceil Heatr 21-3/4 H 240V MPN:MUH102

Discount: See in Cart
Free Shipping
In Stock
Brand: Qmark
Part #: MUH102
UPC: 685360047362
SKU
226-cxg-25d239
$1,405.29

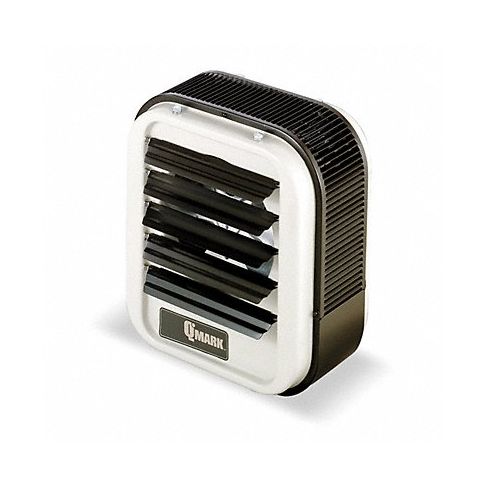

Sspnd Elct Wl/Ceil Heatr 21-3/4 H 240V

The Sspnd Elct Wl/Ceil Heatr 21-3/4 H 240V from Qmark is a suspended electric wall and ceiling unit heater that provides primary or supplementary heating in large or exposed areas like factories, warehouses, and stock rooms. With its forced air system, it efficiently heats the air using a heating element and a fan to deliver warmth in downflow or horizontal applications. The unit's compact size saves limited floorspace and can be suspended from a bracket or threaded rod for easy installation. It is ideal for use in facilities that require a reliable source of supplemental heat, such as factories, warehouses, and large commercial spaces. With its energy-efficient design, the Sspnd Elct Wl/Ceil Heatr 21-3/4 H 240V offers a cost-effective solution for heating large areas without sacrificing performance or efficiency.

Top product features:

  • Suspended design for easy installation and limited floorspace
  • Forced air system for efficient heating
  • Compact size for use in large or exposed areas

Top product applications:

  • Supplementary heating in large warehouses and factories
  • Primary heating in stock rooms and exposed areas
  • Heating in large commercial spaces like restaurants and office buildings
Suspended electric wall and ceiling unit heaters suspend from a bracket or threaded rod for use in downflow or horizontal applications and save limited floorspace. They provide primary or supplementary heating in large or exposed areas like factories, warehouses, and stock rooms. They use a forced air system that heats the air using a heating element and a fan.

Technical Specifications

  • Item Electric Wall & Ceiling Unit Heater
  • Overall Height 21 3/4 in
  • Overall Width 19 in
  • Overall Depth 7 1/2 in
  • Air Flow 650 cfm
  • Air Temp. Rise 49 Degrees F
  • Voltage 208/240V AC
  • Phase 1 or 3
  • Wattage Output 7.5kW/10kW
  • Heating Method Fan Forced
  • Heating Capacity 25,600/34,100 BtuH
  • Mounting Location Ceiling, Wall
  • Horizontal Air Throw 18 ft
  • Frequency 60 Hz
  • Amperage 36A/42A
  • Control Type Mechanical Selector Dial
  • Contactor Coil Voltage 24V AC
  • Housing Color Beige
  • Housing Finish Polyester Powder Coated
  • Housing Material Steel
  • Vertical Floor Coverage 14 ft
  • Vertical Mounting H 14 ft
  • Requires MMB10, UHMT1
  • Includes Adjustable Air Outlet Louvers
  • Manufacturers Warranty Length 1 yr Parts, 5 yr Elements
  • Standards UL, NEC, OSHA

Manufacturer Details

  • Manufacturer: Qmark
  • Condensed Mfg Number: MUH102
  • MPN: MUH102

Label Details

  • Hazardous Material: N
  • Green Material Flag: N
  • Country of Origin: US
  • CA Prop 65 Wht Label: N

Classification Details

  • Harmonization Code: 8516290090
  • GDS Category Name: Electric Wall and Ceiling Unit Heaters
  • GDS Family Name: Electric Heaters and Accessories
  • GDS Segment Name: HVAC and Refrigeration
  • UNSPSC: 40101814
  • UNSPSC Class ID: 18
  • UNSPSC Commodity Name: Heating equipment and parts and accessories
  • UNSPSC Commodity ID: 14
  • UNSPSC Commodity Name: Finned tubular heaters
  • UNSPSC Family ID: 10
  • UNSPSC Family Name: Heating and ventilation and air circulation
  • UNSPSC Segment ID: 40
  • UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components

Shipping Details

  • Not For Sale In: HI AK PR
Related ASINs: B005FYN5XK
