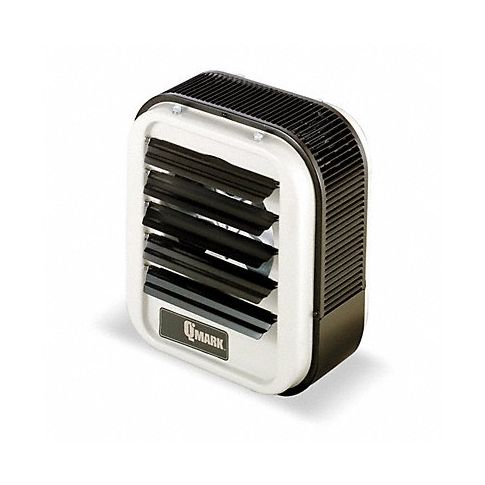

Sspnd Elct Wl/Ceil Heatr 21-3/4 H 480V MPN:MUH074
The Sspnd Elct Wl/Ceil Heatr 21-3/4 H 480V from Qmark is a versatile electric unit heater designed for suspended installation in both wall and ceiling applications. With an overall height of 21 inches, this unit heater provides primary or supplementary heating in large and exposed areas such as factories, warehouses, and stockrooms. The forced-air system efficiently warms the air using a heating element and a fan, delivering powerful heating capability without taking up valuable floor space. The Qmark suspended electric wall and ceiling unit heater can be used in downflow or horizontal applications, making it ideal for various settings. It features durable construction to withstand rigorous industrial use while providing energy-efficient and cost-effective heat for your facility.
Top product features:
- Suspended installation for easy setup and space-saving.
- Forced-air system for efficient heating.
- Suitable for primary or supplementary heating in large areas.
Top product applications:
- Primary heating in warehouses.
- Supplementary heating in factories and stockrooms.
- Heating large, exposed areas in industrial settings.
Technical Specifications
- Item Electric Wall & Ceiling Unit Heater
- Overall Height 21 3/4 in
- Overall Width 19 in
- Overall Depth 7 1/2 in
- Air Flow 650 cfm
- Air Temp. Rise 37 Degrees F
- Voltage 480V AC
- Phase 3
- Wattage Output 7.5kW
- Heating Method Fan Forced
- Heating Capacity 25,600 BtuH
- Mounting Location Ceiling, Wall
- Horizontal Air Throw 18 ft
- Frequency 60 Hz
- Amperage 9A
- Control Type Mechanical Selector Dial
- Contactor Coil Voltage 24V AC
- Housing Color Beige
- Housing Finish Polyester Powder Coated
- Housing Material Steel
- Vertical Floor Coverage 14 ft
- Vertical Mounting H 14 ft
- Requires MMB10, UHMT1
- Includes Adjustable Air Outlet Louvers
- Manufacturers Warranty Length 1 yr Parts, 5 yr Elements
- Standards UL, NEC, OSHA
Manufacturer Details
- Manufacturer: Qmark
- Condensed Mfg Number: MUH074
- MPN: MUH074
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8516290090
- GDS Category Name: Electric Wall and Ceiling Unit Heaters
- GDS Family Name: Electric Heaters and Accessories
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40101814
- UNSPSC Class ID: 18
- UNSPSC Commodity Name: Heating equipment and parts and accessories
- UNSPSC Commodity ID: 14
- UNSPSC Commodity Name: Finned tubular heaters
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
