Sspnd Elct Wl/Ceil Heatr 16 H 480V 3Ph MPN:MUH0541

Discount: See in Cart
Free Shipping
In Stock
Brand: Qmark
Part #: MUH0541
UPC: 685360047256
SKU
226-cxg-25d235
$1,195.49

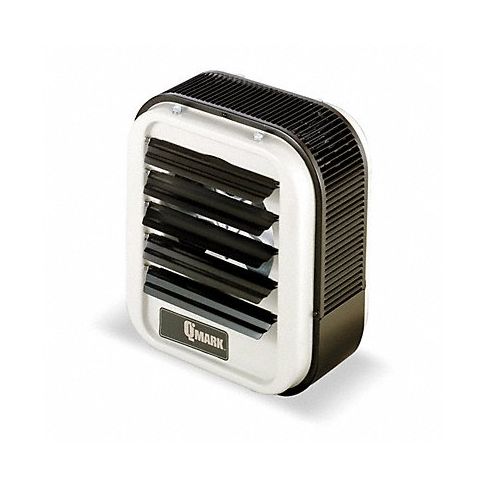

Sspnd Elct Wl/Ceil Heatr 16 H 480V 3Ph

Introducing Sspnd Elct Wl/Ceil Heatr 16 H 480V 3Ph, our top-performing electric wall and ceiling unit heaters specifically designed for commercial spaces like factories, warehouses, and stock rooms. These units save limited floorspace by suspending from a bracket or threaded rod, providing effective primary or supplementary heating in large and exposed areas. With an airflow of 350 cfm, this unit efficiently heats the air using a heating element and a fan. Its sturdy construction ensures longevity and durability, while its compact dimensions make it ideal for various applications. Say goodbye to wasted floorspace with Sspnd Elct Wl/Ceil Heatr 16 H 480V 3Ph, the ultimate solution for efficient heating in commercial settings.

Top product features:

  • Suspension Option: The ability to suspend from a bracket or threaded rod offers flexibility and space-saving design for different commercial applications.
  • Forced Air System: The unit heater utilizes forced air system that quickly and effectively distributes the heat through its heating element and fan, providing uniform heating coverage in large areas.
  • High Output Heating Capacity: Its high output heating capacity of 350 cfm makes it suitable for providing primary or supplementary heating in cold environments like factories, warehouses, and stock rooms.

Top product applications:

  • Factories: Sspnd Elct Wl/Ceil Heatr 16 H 480V 3Ph is suitable for providing supplementary heating in factories where workers require warmth while working on production lines, assembly stations or packing areas.
  • Warehouses: This unit heater can be used to heat large open spaces such as warehouse aisles, entryways, and storage areas, keeping the environment comfortable for inventory counting and order picking activities.
  • Stock Rooms: The Sspnd Elct Wl/Ceil Heatr 16 H 480V 3Ph can also be used in stock rooms to provide supplementary heating when staff needs extra warmth while sorting, counting, and storing merchandise on shelves or pallet racks.
Suspended electric wall and ceiling unit heaters suspend from a bracket or threaded rod for use in downflow or horizontal applications and save limited floorspace. They provide primary or supplementary heating in large or exposed areas like factories, warehouses, and stock rooms. They use a forced air system that heats the air using a heating element and a fan.

Technical Specifications

  • Item Electric Wall & Ceiling Unit Heater
  • Overall Height 16 in
  • Overall Width 14 in
  • Overall Depth 7 1/2 in
  • Air Flow 350 cfm
  • Air Temp. Rise 45 Degrees F
  • Voltage 480V AC
  • Phase 3
  • Wattage Output 5kW
  • Heating Method Fan Forced
  • Heating Capacity 17,000 BtuH
  • Mounting Location Ceiling, Wall
  • Horizontal Air Throw 12 ft
  • Frequency 60 Hz
  • Amperage 6A
  • Control Type Mechanical Selector Dial
  • Contactor Coil Voltage 24V AC
  • Housing Color Beige
  • Housing Finish Polyester Powder Coated
  • Housing Material Steel
  • Vertical Floor Coverage 9 ft
  • Vertical Mounting H 9 ft
  • Requires MMB10, UHMT1
  • Includes Adjustable Air Outlet Louvers
  • Manufacturers Warranty Length 1 yr Parts, 5 yr Elements
  • Standards UL, NEC, OSHA

Manufacturer Details

  • Manufacturer: Qmark
  • Condensed Mfg Number: MUH0541
  • MPN: MUH0541

Label Details

  • Hazardous Material: N
  • Green Material Flag: N
  • Country of Origin: US
  • CA Prop 65 Wht Label: N

Classification Details

  • Harmonization Code: 8516290030
  • GDS Category Name: Electric Wall and Ceiling Unit Heaters
  • GDS Family Name: Electric Heaters and Accessories
  • GDS Segment Name: HVAC and Refrigeration
  • UNSPSC: 40101814
  • UNSPSC Class ID: 18
  • UNSPSC Commodity Name: Heating equipment and parts and accessories
  • UNSPSC Commodity ID: 14
  • UNSPSC Commodity Name: Finned tubular heaters
  • UNSPSC Family ID: 10
  • UNSPSC Family Name: Heating and ventilation and air circulation
  • UNSPSC Segment ID: 40
  • UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components

Shipping Details

  • Not For Sale In: HI AK PR
