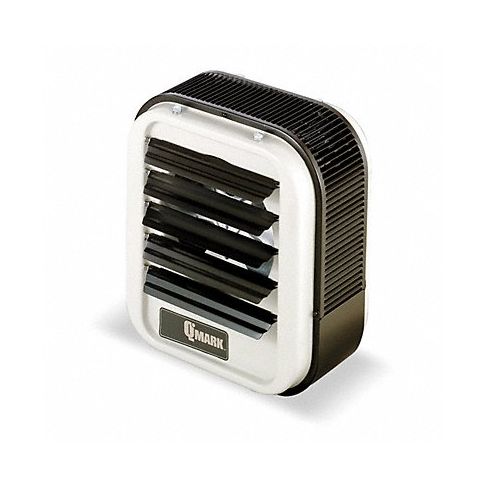

Sspnd Elct Wl/Ceil Heatr 16 H 208V 1Ph MPN:MUH0381

Discount: See in Cart
Free Shipping
In Stock
Brand: Qmark
Part #: MUH0381
SKU
226-CXG-25D233
$785.49
Sspnd Elct Wl/Ceil Heatr 16 H 208V 1Ph

Introducing the Qmark Sspnd Elct Wl/Ceil Heatr 16 H 208V 1Ph - a versatile suspended electric wall and ceiling unit heater designed for large and exposed areas like factories, warehouses, and stock rooms. This forced air system effectively heats the air using a heating element and a fan to provide primary or supplementary heating. Its compact design saves floorspace while delivering powerful heating performance. The unit is easy to install and can be suspended from a bracket or threaded rod for downflow or horizontal applications. With 350 cfm air flow, the Sspnd Elct Wl/Ceil Heatr is ideal for providing efficient warmth in large industrial or commercial spaces.

Top product features:

  • Suspension options: This unit heater can be suspended from a bracket or threaded rod for downflow or horizontal applications.
  • Efficient forced air system: It uses a forced air system that heats the air using a heating element and a fan to provide effective primary or supplementary heating.
  • Large coverage area: This product is suitable for large and exposed areas like factories, warehouses, and stock rooms where efficient heating solutions are required.

Top product applications:

  • Industrial heating solutions: The Qmark Sspnd Elct Wl/Ceil Heatr can be used as primary or supplementary heating for large and exposed areas in industrial settings like factories, warehouses, and stock rooms where efficient warmth is required.
  • Supplementary office heating: This unit heater can be utilized to provide additional heat in open spaces like offices, conference rooms, or breakrooms where a portable heating solution is necessary.
  • Warming up large outdoor areas: The forced air system of this product makes it suitable for warming up outdoor spaces like patios, gazebos, or parking lots when the temperature drops, creating an inviting environment for people to enjoy.
Suspended electric wall and ceiling unit heaters suspend from a bracket or threaded rod for use in downflow or horizontal applications and save limited floorspace. They provide primary or supplementary heating in large or exposed areas like factories, warehouses, and stock rooms. They use a forced air system that heats the air using a heating element and a fan.

Technical Specifications

  • Item Electric Wall & Ceiling Unit Heater
  • Overall Height 16 in
  • Overall Width 14 in
  • Overall Depth 7 1/2 in
  • Air Flow 350 cfm
  • Air Temp. Rise 27 Degrees F
  • Voltage 208V AC
  • Phase 1
  • Wattage Output 3kW
  • Heating Method Fan Forced
  • Heating Capacity 10,200 BtuH
  • Mounting Location Ceiling, Wall
  • Horizontal Air Throw 12 ft
  • Frequency 60 Hz
  • Amperage 14.5A
  • Control Type Mechanical Selector Dial
  • Contactor Coil Voltage 208V AC
  • Housing Color Beige
  • Housing Finish Polyester Powder Coated
  • Housing Material Steel
  • Vertical Floor Coverage 9 ft
  • Vertical Mounting H 9 ft
  • Requires MMB10, UHMT1
  • Includes Adjustable Air Outlet Louvers
  • Manufacturers Warranty Length 1 yr Parts, 5 yr Elements
  • Standards UL, NEC, OSHA

Manufacturer Details

  • Manufacturer: Qmark
  • Condensed Mfg Number: MUH0381
  • MPN: MUH0381

Label Details

  • Hazardous Material: N
  • Green Material Flag: N
  • Country of Origin: US
  • CA Prop 65 Wht Label: N

Classification Details

  • Harmonization Code: 8516290090
  • GDS Category Name: Electric Wall and Ceiling Unit Heaters
  • GDS Family Name: Electric Heaters and Accessories
  • GDS Segment Name: HVAC and Refrigeration
  • UNSPSC: 40101814
  • UNSPSC Class ID: 18
  • UNSPSC Commodity Name: Heating equipment and parts and accessories
  • UNSPSC Commodity ID: 14
  • UNSPSC Commodity Name: Finned tubular heaters
  • UNSPSC Family ID: 10
  • UNSPSC Family Name: Heating and ventilation and air circulation
  • UNSPSC Segment ID: 40
  • UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components

Shipping Details

  • Not For Sale In: HI AK PR
