Sspnd Elct Wl/Ceil Heatr 16 H 208/240V MPN:MUH0321

Discount: See in Cart
Free Shipping
In Stock
Brand: Qmark
Part #: MUH0321
UPC: 685360047164
SKU
226-cxg-25d231
$785.49

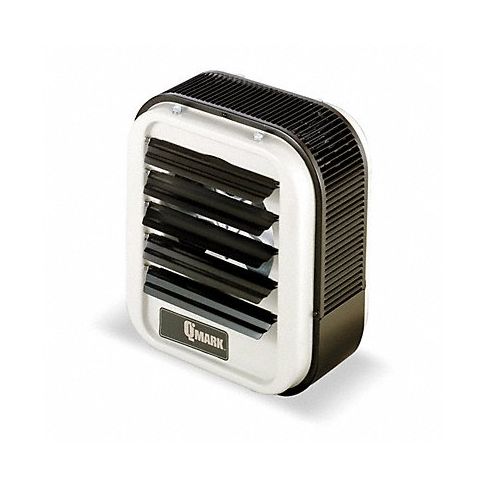

Sspnd Elct Wl/Ceil Heatr 16 H 208/240V

The Sspnd Elct Wl/Ceil Heatr 16 H 208/240V from Qmark is a suspended electric wall and ceiling unit heater designed to provide primary or supplementary heating in large or exposed areas like factories, warehouses, and stock rooms. With its forced air system that heats the air using a heating element and a fan, it saves limited floorspace while offering powerful heating performance of up to 350 cfm air flow. This unit heater is perfect for use in downflow or horizontal applications and features an overall height of 16 inches, width of 14 inches, and depth of 7 1/2 inches. Its versatile and reliable design makes it a great choice for a wide range of industries and applications, providing a cost-effective solution for comfortable and efficient heating solutions.

Top product features:

  • Suspension system for easy installation and placement in different areas
  • Powerful forced air heating system that delivers effective heating performance
  • Versatile design suitable for various industries, applications and environments

Top product applications:

  • Warehouses and distribution centers for efficient heating in large spaces
  • Manufacturing facilities to maintain consistent temperature levels for production processes
  • Agricultural storage buildings to provide supplementary heating during cold seasons
Suspended electric wall and ceiling unit heaters suspend from a bracket or threaded rod for use in downflow or horizontal applications and save limited floorspace. They provide primary or supplementary heating in large or exposed areas like factories, warehouses, and stock rooms. They use a forced air system that heats the air using a heating element and a fan.

Technical Specifications

  • Item Electric Wall & Ceiling Unit Heater
  • Overall Height 16 in
  • Overall Width 14 in
  • Overall Depth 7 1/2 in
  • Air Flow 350 cfm
  • Air Temp. Rise 27 Degrees F
  • Voltage 208/240V AC
  • Phase 1
  • Wattage Output 2.2kW/3kW
  • Heating Method Fan Forced
  • Heating Capacity 7500/10,200 BtuH
  • Mounting Location Ceiling, Wall
  • Horizontal Air Throw 12 ft
  • Frequency 60 Hz
  • Amperage 11A/12.5A
  • Control Type Mechanical Selector Dial
  • Contactor Coil Voltage 208/240V AC
  • Housing Color Beige
  • Housing Finish Polyester Powder Coated
  • Housing Material Steel
  • Vertical Floor Coverage 9 ft
  • Vertical Mounting H 9 ft
  • Requires MMB10, UHMT1
  • Includes Adjustable Air Outlet Louvers
  • Manufacturers Warranty Length 1 yr Parts, 5 yr Elements
  • Standards UL, NEC, OSHA

Manufacturer Details

  • Manufacturer: Qmark
  • Condensed Mfg Number: MUH0321
  • MPN: MUH0321

Label Details

  • Hazardous Material: N
  • Green Material Flag: N
  • Country of Origin: US
  • CA Prop 65 Wht Label: N

Classification Details

  • Harmonization Code: 8516290090
  • GDS Category Name: Electric Wall and Ceiling Unit Heaters
  • GDS Family Name: Electric Heaters and Accessories
  • GDS Segment Name: HVAC and Refrigeration
  • UNSPSC: 40101814
  • UNSPSC Class ID: 18
  • UNSPSC Commodity Name: Heating equipment and parts and accessories
  • UNSPSC Commodity ID: 14
  • UNSPSC Commodity Name: Finned tubular heaters
  • UNSPSC Family ID: 10
  • UNSPSC Family Name: Heating and ventilation and air circulation
  • UNSPSC Segment ID: 40
  • UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components

Shipping Details

  • Not For Sale In: HI AK PR
Related ASINs: B006TI8L26
