Sspnd Elct Wl/Ceil Heatr 21-3/4 H 277V MPN:MUH107

Discount: See in Cart
Free Shipping
In Stock
Brand: Qmark
Part #: MUH107
UPC: 685360047409
SKU
226-cxg-20ca17
$1,891.29

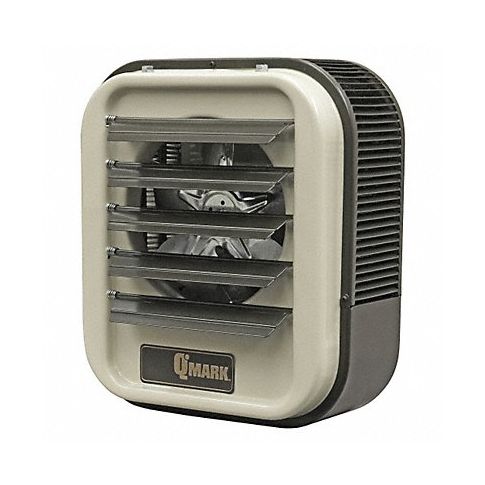

Sspnd Elct Wl/Ceil Heatr 21-3/4 H 277V

Introducing the Qmark suspended electric wall and ceiling unit heater for large or exposed areas like factories, warehouses, and stock rooms. With a robust build quality for commercial use, this versatile heating solution saves floorspace by suspending from a bracket or threaded rod in downflow or horizontal applications. It uses a forced air system to efficiently heat the surrounding air using a heating element and fan. Ideal for providing primary or supplementary heating, its powerful 650 CFM air flow helps maintain a comfortable temperature throughout your space. Its space-saving design, ease of installation, energy efficiency, and reliable performance make it an ideal choice for any business looking to optimize their heating system while cutting costs and increasing comfort for employees and customers alike.

Top product features:

  • Versatile heating solution for commercial use
  • Suspends from bracket or threaded rod to save floorspace
  • Powerful 650 CFM air flow for effective heating

Top product applications:

  • Heating large industrial spaces in manufacturing facilities
  • Supplementing existing heating systems in warehouses or storage areas
  • Temporary or portable heating solutions during renovation projects
Suspended electric wall and ceiling unit heaters suspend from a bracket or threaded rod for use in downflow or horizontal applications and save limited floorspace. They provide primary or supplementary heating in large or exposed areas like factories, warehouses, and stock rooms. They use a forced air system that heats the air using a heating element and a fan.

Technical Specifications

  • Item Electric Wall & Ceiling Unit Heater
  • Overall Height 21 3/4 in
  • Overall Width 19 in
  • Overall Depth 7 1/2 in
  • Air Flow 650 cfm
  • Air Temp. Rise 49 Degrees F
  • Voltage 277V AC
  • Phase 1
  • Wattage Output 10kW
  • Heating Method Fan Forced
  • Heating Capacity 34,130 BtuH
  • Mounting Location Ceiling, Wall
  • Horizontal Air Throw 18 ft
  • Frequency 50/60 Hz
  • Amperage 36A
  • Control Type Mechanical Selector Dial
  • Contactor Coil Voltage 24V AC
  • Housing Color Beige
  • Housing Finish Powder Coated
  • Housing Material Steel
  • Vertical Floor Coverage 26 ft
  • Vertical Mounting H 14 ft
  • Requires MMB20, UHMT1
  • Includes Adjustable Air Outlet Louvers
  • Manufacturers Warranty Length 1 yr Parts, 5 yr Elements
  • Standards UL, NEC, OSHA

Manufacturer Details

  • Manufacturer: Qmark
  • Condensed Mfg Number: MUH107
  • MPN: MUH107

Label Details

  • Hazardous Material: N
  • Green Material Flag: N
  • Country of Origin: US
  • CA Prop 65 Wht Label: N

Classification Details

  • Harmonization Code: 8516290090
  • GDS Category Name: Electric Wall and Ceiling Unit Heaters
  • GDS Family Name: Electric Heaters and Accessories
  • GDS Segment Name: HVAC and Refrigeration
  • UNSPSC: 40101819
  • UNSPSC Class ID: 18
  • UNSPSC Commodity Name: Heating equipment and parts and accessories
  • UNSPSC Commodity ID: 19
  • UNSPSC Commodity Name: Space heaters
  • UNSPSC Family ID: 10
  • UNSPSC Family Name: Heating and ventilation and air circulation
  • UNSPSC Segment ID: 40
  • UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components

Shipping Details

  • Not For Sale In: HI AK PR
Related ASINs: B006TI8P4U
