Sspnd Elct Wl/Ceil Heatr 16 H 600V 3Ph MPN:MUH0561

Discount: See in Cart
Free Shipping
In Stock
Brand: Qmark
Part #: MUH0561
UPC: 685360047263
SKU
226-cxg-20ca09
$1,582.79

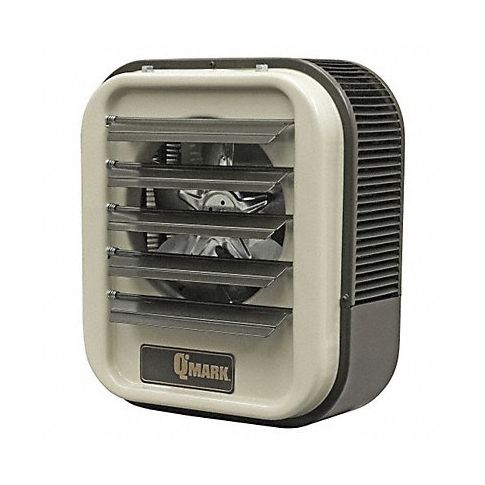

Sspnd Elct Wl/Ceil Heatr 16 H 600V 3Ph

Introducing Sspnd Elct Wl/Ceil Heatr 16 H 600V 3Ph from Qmark suspended electric wall and ceiling unit heaters that offer efficient, reliable primary or supplementary heating for large spaces like factories, warehouses, stockrooms, and more. These units save floorspace by suspending from a bracket or threaded rod and can be installed in downflow or horizontal applications. They use forced air technology with heating elements and fans to warm the air, ensuring quick and efficient heating of large areas while saving energy costs. Designed for heavy-duty industrial use, these unit heaters are built to last and offer a cost-effective solution to your heating needs. Ideal for applications where floorspace is limited or you need supplementary heating in an existing system, these Qmark units offer versatility, efficiency, and reliability. Upgrade your space heating today with Sspnd Elct Wl/Ceil Heatr 16 H 600V 3Ph from Qmark!

Top product features:

  • Suspension system for downflow and horizontal applications
  • Cost-effective primary or supplementary heating for large spaces
  • Forced air technology with heating elements and fans for quick heating.

Top product applications:

  • Primary heating for warehouses and factories during colder seasons
  • Supplementary heating for large offices or commercial spaces in need of extra warmth
  • Emergency heat source during power outages or as a backup to central heating systems.
Suspended electric wall and ceiling unit heaters suspend from a bracket or threaded rod for use in downflow or horizontal applications and save limited floorspace. They provide primary or supplementary heating in large or exposed areas like factories, warehouses, and stock rooms. They use a forced air system that heats the air using a heating element and a fan.

Technical Specifications

  • Item Electric Wall & Ceiling Unit Heater
  • Overall Height 16 in
  • Overall Width 14 in
  • Overall Depth 7 1/2 in
  • Air Flow 350 cfm
  • Air Temp. Rise 45 Degrees F
  • Voltage 600V AC
  • Phase 3
  • Wattage Output 5kW
  • Heating Method Fan Forced
  • Heating Capacity 17,065 BtuH
  • Mounting Location Ceiling, Wall
  • Horizontal Air Throw 12 ft
  • Frequency 50/60 Hz
  • Amperage 4.8A
  • Control Type Mechanical Selector Dial
  • Contactor Coil Voltage 24V AC
  • Housing Color Beige
  • Housing Finish Powder Coated
  • Housing Material Steel
  • Vertical Floor Coverage 18 ft
  • Vertical Mounting H 9 ft
  • Requires MMB10, UHMT1
  • Includes Adjustable Air Outlet Louvers
  • Manufacturers Warranty Length 1 yr Parts, 5 yr Elements
  • Standards UL, NEC, OSHA

Manufacturer Details

  • Manufacturer: Qmark
  • Condensed Mfg Number: MUH0561
  • MPN: MUH0561

Label Details

  • Hazardous Material: N
  • Green Material Flag: N
  • Country of Origin: US
  • CA Prop 65 Wht Label: N

Classification Details

  • Harmonization Code: 8516290090
  • GDS Category Name: Electric Wall and Ceiling Unit Heaters
  • GDS Family Name: Electric Heaters and Accessories
  • GDS Segment Name: HVAC and Refrigeration
  • UNSPSC: 40101819
  • UNSPSC Class ID: 18
  • UNSPSC Commodity Name: Heating equipment and parts and accessories
  • UNSPSC Commodity ID: 19
  • UNSPSC Commodity Name: Space heaters
  • UNSPSC Family ID: 10
  • UNSPSC Family Name: Heating and ventilation and air circulation
  • UNSPSC Segment ID: 40
  • UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components

Shipping Details
