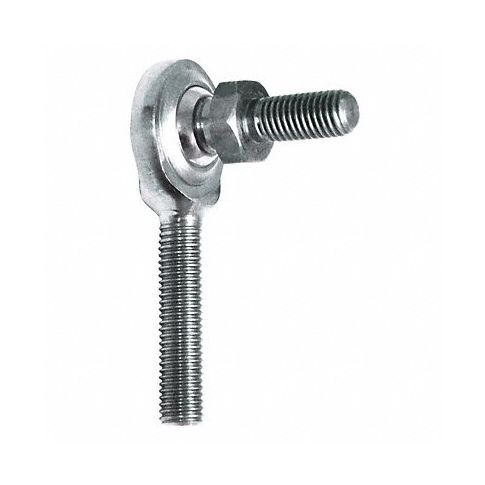

Male Rod End RH 16 mm Bore M16-2 MPN:MGMR16TS
SKU
226-CXO-39N534
Male Rod End RH 16 mm Bore M16-2
If you need a robust pivot point for your machinery in high-stress applications, our Male Rod End RH 16 mm Bore M16-2 from QA1 is the perfect solution. Constructed with durable steel and designed to handle misalignment, this product offers precise ball bearing movement within a carbon steel housing for a stable yet flexible pivot point. This makes it ideal for industrial applications where reliable operation is essential, offering greater precision and control. Improve your machinery's performance today by implementing our Male Rod End RH 16 mm Bore M16-2 from QA1.
Top product features:
- Carbon steel housing for durability in demanding applications.
- Stainless steel/PTFE race construction for precise ball bearing movement.
- Male studded design for reliable pivot point operation.
Top product applications:
- Industrial automation and machinery for precise pivoting in assembly lines or robotics
- Construction equipment to allow movement and alignment of hydraulic components
- Aerospace for flight control systems and mechanical movements
This steel spherical rod end is engineered to allow pivoting in the housing to compensate for misalignment in industrial applications. It features 52100 steel ball bearing construction, and carbon steel housing to help provide durability in demanding applications.
Technical Specifications
- Item Stainless Steel/PTFE Race Rod End
- Type Male Studded
- Ball 440C Stainless Steel Spherical
- Thread Right Hand
- Thread Size M16 x 2.0
- Stud Length 38 mm
- Bearings 440C SS Spherical Ball
- Housing 300 Series Stainless Steel
- Construction Follows SAE Specification J1120
- Dimension A M16 x 2.0
- Dimension B 24 mm
- Dimension C 38 mm
- Dimension E 38 mm
- Dimension G 66 mm
- Dimension H 40 mm
- Dimension J 85 mm
- Dimension N 21 mm
- Max. Angular Misalignment 33 Degrees
- Static Radial Load 25,162 N
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: MGMR16TS
- MPN: MGMR16TS
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:42am UTC
