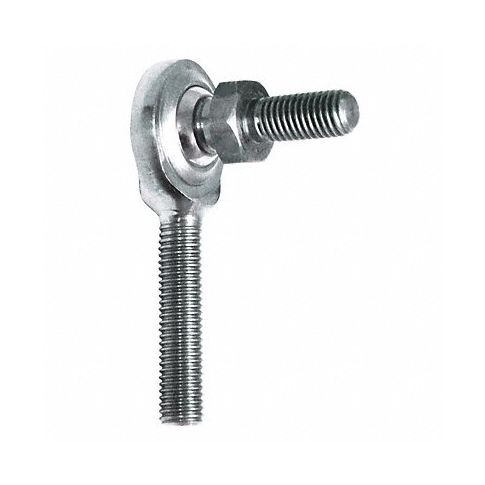

Male Rod End LH 10 mm Bore M10-1.5 MPN:MGML10TS
SKU
226-CXO-39N529
Male Rod End LH 10 mm Bore M10-1.5
QA1's Male Rod End LH 10 mm Bore M10-1.5 is the perfect solution for precision alignment in demanding industrial applications. Its stainless steel and PTFE construction ensures durability, while the spherical ball bearing provides smooth, precise pivoting. The left-hand thread design and M10 x 1.5 thread size make it compatible with a wide range of applications. With its exceptional strength and reliability, this rod end is ideal for use in machines and equipment where accurate alignment is crucial. Trust QA1 to deliver the quality and performance you need for your most challenging projects.
Top product features:
- Stainless steel and PTFE construction for durability in demanding applications.
- Spherical ball bearing for smooth, precise pivoting.
- Left-hand thread design and M10 x 1.5 thread size for compatibility with a wide range of applications.
Top product applications:
- Industrial machinery and equipment that require precise alignment.
- Robotics and automation systems that require smooth, precise pivoting movements.
- Heavy-duty construction equipment that needs to withstand harsh conditions and provide durability in demanding applications.
This steel spherical rod end is engineered to allow pivoting in the housing to compensate for misalignment in industrial applications. It features 52100 steel ball bearing construction, and carbon steel housing to help provide durability in demanding applications.
Technical Specifications
- Item Stainless Steel/PTFE Race Rod End
- Type Male Studded
- Ball 440C Stainless Steel Spherical
- Thread Left Hand
- Thread Size M10 x 1.5
- Stud Length 23 mm
- Bearings 440C SS Spherical Ball
- Housing 300 Series Stainless Steel
- Construction Follows SAE Specification J1120
- Dimension A M10 x 1.5
- Dimension B 16.5 mm
- Dimension C 23 mm
- Dimension E 27 mm
- Dimension G 48 mm
- Dimension H 29 mm
- Dimension J 61.5 mm
- Dimension N 14 mm
- Max. Angular Misalignment 26 Degrees
- Static Radial Load 14,144 N
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: MGML10TS
- MPN: MGML10TS
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
