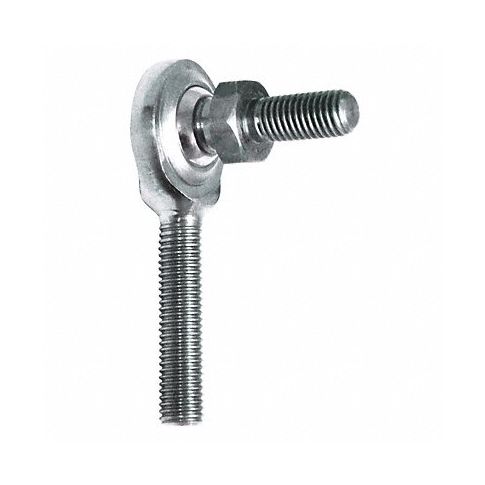

Male Rod End RH 10 mm Bore M10-1.5 MPN:MGMR10TS
WALTER PROTOTYP's male rod end with a right-hand threading design and a 10mm bore diameter is ideally suited for aerospace applications requiring high precision movement solutions for control rods or aircraft components like rudders or elevators. With its M10-1.5 threads, this rod end offers strong connection points in mechanical systems needing secure and durable linkages between moving elements such as tie rods or bell cranks commonly found within the aerospace industry. Additionally, industries that rely on precision motion control like robotics or automotive assemblies benefit from this rod end's consistent performance and smooth operation which minimizes friction ensuring precise movement in critical applications where high performance is expected. Its versatility, durability and cost-effectiveness make it suitable across multiple sectors highlighting its advantages in the competitive marketplace catering to demanding clients who expect superior quality components to maintain their operational excellence.
Technical Specifications
- Item Stainless Steel/PTFE Race Rod End
- Type Male Studded
- Ball 440C Stainless Steel Spherical
- Thread Right Hand
- Thread Size M10 x 1.5
- Stud Length 23 mm
- Bearings 440C SS Spherical Ball
- Housing 300 Series Stainless Steel
- Construction Follows SAE Specification J1120
- Dimension A M10 x 1.5
- Dimension B 16.5 mm
- Dimension C 23 mm
- Dimension E 27 mm
- Dimension G 48 mm
- Dimension H 29 mm
- Dimension J 61.5 mm
- Dimension N 14 mm
- Max. Angular Misalignment 26 Degrees
- Static Radial Load 14,144 N
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: MGMR10TS
- MPN: MGMR10TS
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
