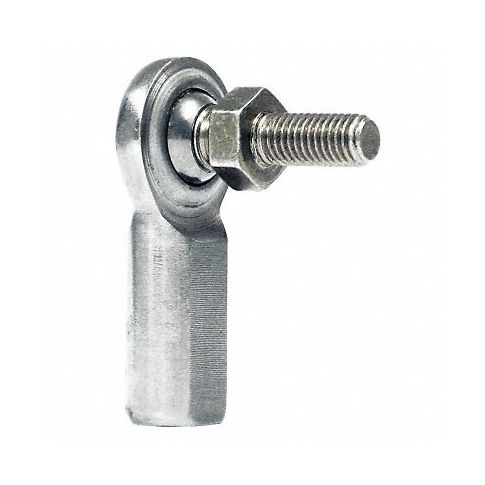

Female Rod End RH 16 mm Bore M16-2 MPN:MGFR16TS
Female Rod End RH 16 mm Bore M16-2
This Female Rod End RH 16 mm Bore M16-2 from QA1 is an essential component for your machinery's smooth and reliable operation. The rod end allows for precise pivoting in the housing, which compensates for misalignment in industrial applications, ensuring maximum productivity and efficiency. Constructed from high-quality stainless steel and PTFE race material, this rod end provides durability that can withstand demanding conditions. With its right-hand thread and M16 x 2.0 size, it's an ideal fit for a wide range of industrial applications where accurate movement and reliability are crucial. Upgrade your machinery with this Female Rod End and experience the benefits of precise motion control in your operation.
Top product features:
- Spherical bearings provide precise pivoting for alignment compensation
- Carbon steel housing increases durability in demanding applications
- Right-hand thread provides ease of installation and usage
Top product applications:
- Industrial machinery where precise pivoting and alignment compensation is required
- Robotics applications that require smooth and durable movement
- Agricultural equipment that needs to compensate for misalignment and provide durability in harsh environments
This steel spherical rod end is engineered to allow pivoting in the housing to compensate for misalignment in industrial applications. It features 52100 steel ball bearing construction, and carbon steel housing to help provide durability in demanding applications.
Technical Specifications
- Item Stainless Steel/PTFE Race Rod End
- Type Female Studded
- Ball 440C Stainless Steel Spherical
- Thread Right Hand
- Thread Size M16 x 2.0
- Stud Length 38 mm
- Bearings 440C SS Spherical Ball
- Housing 300 Series Stainless Steel
- Construction Follows SAE Specification J1120
- Dimension A M16 x 2.0
- Dimension B 24 mm
- Dimension C 38 mm
- Dimension E 38 mm
- Dimension G 64 mm
- Dimension H 33 mm
- Dimension J 83 mm
- Dimension N 21 mm
- Max. Angular Misalignment 33 Degrees
- Static Radial Load 25,162 N
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: MGFR16TS
- MPN: MGFR16TS
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:39am UTC
Category: Bearings
