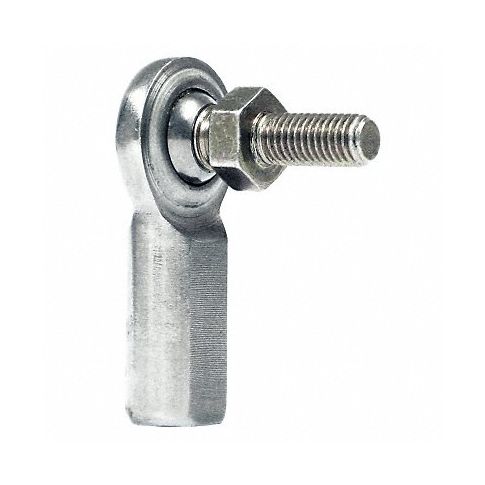

Female Rod End RH 12 mm Bore M12-1.75 MPN:MGFR12TS
The female rod end is an essential component in various industrial applications due to its versatile features and adaptability. Its key specifications include a 12mm bore size, M12-1.75 threading, and a rigid steel construction for maximum durability. It can be used to connect machinery accessories or tool shanks with machinery components, allowing movement in multiple directions while reducing downtime when adjustments need to be made. Its precision engineering ensures accurate alignment and tight tolerances, resulting in reliable and consistent performance across different industries, such as automotive, aerospace, and construction. The female rod end is an important tool for professionals who require convenient work solutions and flexibility in their operations.
Technical Specifications
- Item Stainless Steel/PTFE Race Rod End
- Type Female Studded
- Ball 440C Stainless Steel Spherical
- Thread Right Hand
- Thread Size M12 x 1.75
- Stud Length 28.5 mm
- Bearings 440C SS Spherical Ball
- Housing 300 Series Stainless Steel
- Construction Follows SAE Specification J1120
- Dimension A M12 x 1.75
- Dimension B 19.5 mm
- Dimension C 28.5 mm
- Dimension E 30 mm
- Dimension G 50 mm
- Dimension H 24 mm
- Dimension J 65 mm
- Dimension N 16 mm
- Max. Angular Misalignment 27 Degrees
- Static Radial Load 17,373 N
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: MGFR12TS
- MPN: MGFR12TS
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
