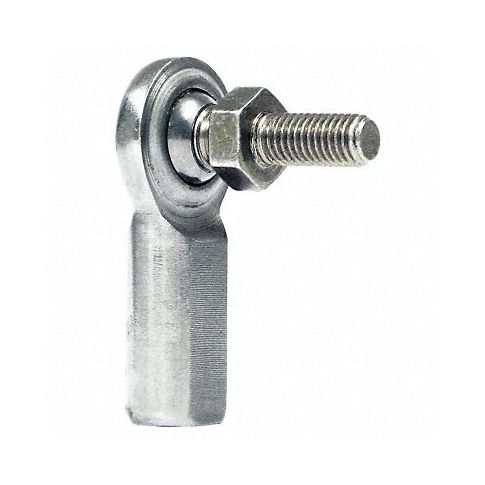

Female Rod End LH 6 mm Bore M6-1 MPN:MGFL6TS
Female Rod End LH 6 mm Bore M6-1
Titan USA's left-handed threaded female rod end offers reliable power transmission for industries like automotive, agriculture, and material handling where smooth, efficient motion is critical for optimal operation. Typical users include professional technicians, engineers or machinists seeking cost-effective, high-strength, corrosion-resistant connections.
This steel spherical rod end is engineered to allow pivoting in the housing to compensate for misalignment in industrial applications. It features 52100 steel ball bearing construction, and carbon steel housing to help provide durability in demanding applications.
Technical Specifications
- Item Stainless Steel/PTFE Race Rod End
- Type Female Studded
- Ball 440C Stainless Steel Spherical
- Thread Left Hand
- Thread Size M6 x 1.0
- Stud Length 14 mm
- Bearings 440C SS Spherical Ball
- Housing 300 Series Stainless Steel
- Construction Follows SAE Specification J1120
- Dimension A M6 x 1.0
- Dimension B 10 mm
- Dimension C 14 mm
- Dimension E 19 mm
- Dimension G 30 mm
- Dimension H 14 mm
- Dimension J 39.5 mm
- Dimension N 9 mm
- Max. Angular Misalignment 23 Degrees
- Static Radial Load 6,138 N
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: MGFL6TS
- MPN: MGFL6TS
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:40am UTC
Category: Bearings
