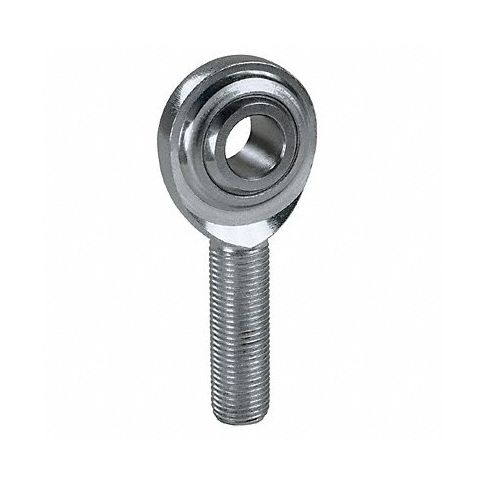

Male Rod End RH 14 mm Bore M14-2 MPN:MGMR14T
SKU
226-CXO-39N504
Male Rod End RH 14 mm Bore M14-2
The male rod end features a one inch fourteen bore with metric threads made from steel offering durability or strength while ensuring longevity engineered to provide precision for applications that demand versatility perfect for commercial or industrial use delivering unmatched performance while achieving superior results ideal for robotics, automation or automotive industry trusting in a premium component designed to exceed demands while maintaining reliability delivering cost-effective operation offering convenience while ensuring compatibility with standard tools making it eco-friendly or economically efficient offering precision and durability.
This steel spherical rod end is engineered to allow pivoting in the housing to compensate for misalignment in industrial applications. It features a precision-ground, hardened 440C stainless steel ball and 300 Series stainless steel body with bonded PTFE fabric race. Excellent for low- to moderate load applications where lubricating the parts is not desirable.
Technical Specifications
- Item Stainless Steel/PTFE Race Rod End
- Type Male Plain
- Ball 440C Stainless Steel Spherical
- Thread Right Hand
- Thread Size M14 x 2.0
- Inside Dia. 14/14.065mm
- Bearings 440C SS Spherical Ball
- Housing 300 Series Stainless Steel
- Construction Follows SAE Specification J1120
- Dimension A M14 x 2.0
- Dimension AA 14/14.065mm
- Dimension E 34.75 mm
- Dimension G 60 mm
- Dimension H 36 mm
- Dimension J 77.375 mm
- Dimension N 19 mm
- Max. Angular Misalignment 30 Degrees
- Static Radial Load 23,699 N
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: MGMR14T
- MPN: MGMR14T
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:33am UTC
Category: Bearings
