Male Rod End RH 6 mm Bore M6-1 MPN:MGMR6T
SKU
226-CXO-39N495

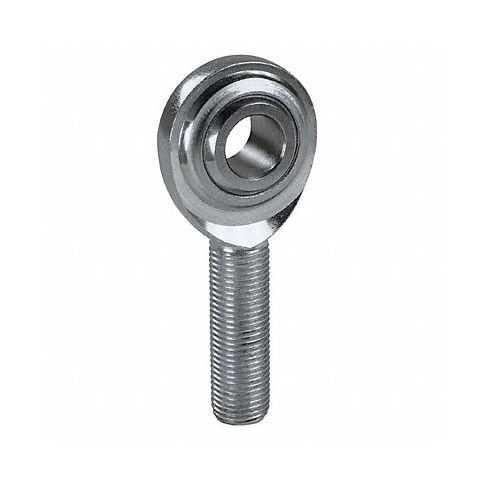

Male Rod End RH 6 mm Bore M6-1
Our premium quality male rod end with an M6-1 threaded bushing and a 6mm bore size offers exceptional performance for power transmission applications. Made from durable chrome steel, this component provides superior strength, corrosion resistance, and wearability. The lightweight design of the rod end simplifies installation while ensuring efficient operation and reliable motion control. Its versatile applications across industries such as automotive, machinery, and robotics make it a popular choice for various power transmission needs. Additionally, the threaded bushing design allows angle adjustments whilst maintaining rigidity.
This steel spherical rod end is engineered to allow pivoting in the housing to compensate for misalignment in industrial applications. It features a precision-ground, hardened 440C stainless steel ball and 300 Series stainless steel body with bonded PTFE fabric race. Excellent for low- to moderate load applications where lubricating the parts is not desirable.
Technical Specifications
- Item Stainless Steel/PTFE Race Rod End
- Type Male Plain
- Ball 440C Stainless Steel Spherical
- Thread Right Hand
- Thread Size M6 x 1.0
- Inside Dia. 6/6.065mm
- Bearings 440C SS Spherical Ball
- Housing 300 Series Stainless Steel
- Construction Follows SAE Specification J1120
- Dimension A M6 x 1.0
- Dimension AA 6/6.065mm
- Dimension E 19 mm
- Dimension G 36 mm
- Dimension H 22 mm
- Dimension J 45.5 mm
- Dimension N 9 mm
- Max. Angular Misalignment 23 Degrees
- Static Radial Load 6,093 N
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: MGMR6T
- MPN: MGMR6T
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on June 10, 2023 12:37am UTC
Category: Bearings
