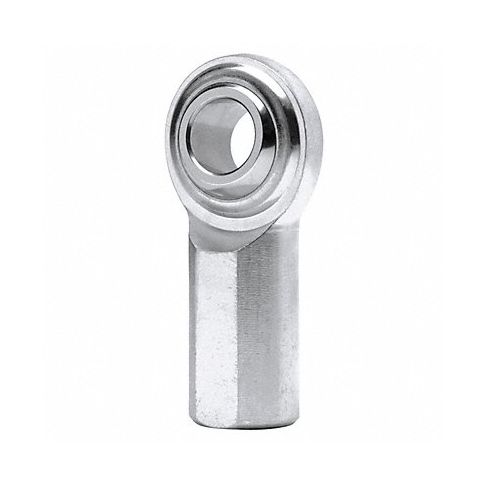

Female Rod End LH 14 mm Bore M14-2 MPN:MGFL14T
Manufactured using premium quality materials specifically engineered for demanding applications within diverse industries requiring robust components, this Female Rod End features a substantial 14mm bore diameter (M14-2) accommodating larger shafts seamlessly while delivering precise control over movement ensuring reliable performance during operation. Designed with superior strength & durability against wear & tear encountered during tough usage conditions it caters to businesses focused on long-lasting high-performance solutions meeting strict industry standards demanded for their applications consistently regardless of material composition involved; including stainless steel, cast iron among others commonly used across industries today relying upon robust components available within the marketplace meeting quality control benchmarks set forth globally expectations from precision tools utilized daily thus satisfying customers' demands seamlessly at all times reliably without compromising performance delivery.
Technical Specifications
- Item Stainless Steel/PTFE Race Rod End
- Type Female Plain
- Ball 440C Stainless Steel Spherical
- Thread Left Hand
- Thread Size M14 x 2.0
- Inside Dia. 14/14.065mm
- Bearings 440C SS Spherical Ball
- Housing 300 Series Stainless Steel
- Construction Follows SAE Specification J1120
- Dimension A M14 x 2.0
- Dimension AA 14/14.065mm
- Dimension E 34.75 mm
- Dimension G 57 mm
- Dimension H 27 mm
- Dimension J 74.375 mm
- Dimension N 19 mm
- Max. Angular Misalignment 30 Degrees
- Static Radial Load 23,699 N
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: MGFL14T
- MPN: MGFL14T
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
