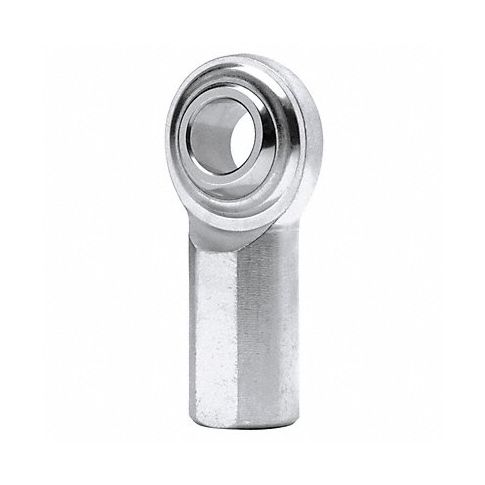

Female Rod End RH 14 mm Bore M14-2 MPN:MGFR14T
The QA1 Female Rod End RH 14 mm Bore M14-2 is a high-quality stainless steel spherical rod end that is designed to offer excellent performance in industrial applications where pivoting in the housing is necessary for misalignment compensation. With its precision-ground, hardened 440C stainless steel ball and 300 Series stainless steel body with bonded PTFE fabric race, this rod end ensures durability and longevity even in low to moderate load applications where lubricating the parts is not desirable. It is an ideal choice for a wide range of industries such as agriculture, automotive, construction, and many more, that require reliable and versatile power transmission components. With its excellent performance and cost-effectiveness, the QA1 Female Rod End RH 14 mm Bore M14-2 is an unbeatable choice for all your power transmission needs.
Top product features:
- Stainless Steel/PTFE Race Rod End ensures durability and longevity in low to moderate load applications without the need for lubrication
- Precision-ground, hardened 440C stainless steel ball provides smooth, precise movement and high strength
- Bonded PTFE fabric race reduces friction and wear, extending the product's lifespan and ensuring a low-maintenance operation
Top product applications:
- Agriculture industry for pivoting and adjustable attachments in implements such as planters and sprayers
- Automotive industry for linkages and suspension systems in cars and trucks
- Construction equipment such as excavators, cranes, and forklifts to compensate for misalignment in hydraulic cylinders and joints
Technical Specifications
- Item Stainless Steel/PTFE Race Rod End
- Type Female Plain
- Ball 440C Stainless Steel Spherical
- Thread Right Hand
- Thread Size M14 x 2.0
- Inside Dia. 14/14.065mm
- Bearings 440C SS Spherical Ball
- Housing 300 Series Stainless Steel
- Construction Follows SAE Specification J1120
- Dimension A M14 x 2.0
- Dimension AA 14/14.065mm
- Dimension E 34.75 mm
- Dimension G 57 mm
- Dimension H 27 mm
- Dimension J 74.375 mm
- Dimension N 19 mm
- Max. Angular Misalignment 30 Degrees
- Static Radial Load 23,699 N
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: MGFR14T
- MPN: MGFR14T
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on October 21, 2024 5:30am UTC Category: Bearings
