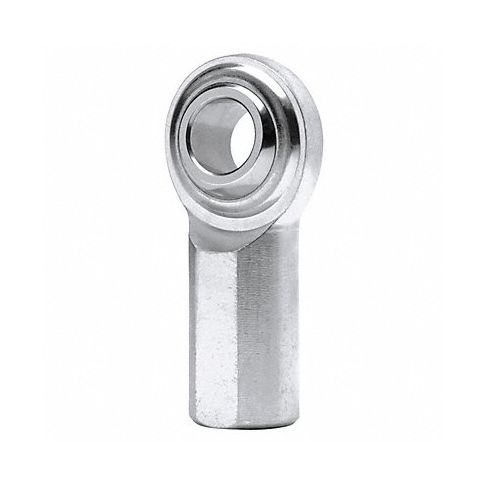

Female Rod End LH 10 mm Bore M10-1.5 MPN:MGFL10T
Female Rod End LH 10 mm Bore M10-1.5
Introducing the QA1 Female Rod End LH 10 mm Bore M10-1.5 - designed for superior performance in heavy-duty industrial applications requiring pivoting action to compensate for misalignment. This durable rod end features a precision-ground, hardened 440C stainless steel ball and 300 Series stainless steel body with bonded PTFE fabric race, ensuring excellent wear resistance and corrosion resistance. Ideal for low- to moderate load applications where lubricating the parts is not desirable, this high-quality rod end is engineered to provide superior performance in a variety of demanding industries. Trust QA1 for superior quality and unmatched durability - invest in a Female Rod End LH 10 mm Bore M10-1.5 today!
Top product features:
- Bonded PTFE fabric race for excellent wear resistance and corrosion resistance
- Hardened 440C stainless steel ball for superior performance
- Left hand thread for easy installation and adjustment
Top product applications:
- Industrial equipment that requires pivoting action to compensate for misalignment
- Lowto moderate load applications where lubrication is not desired or possible
- Rod end joints in linkages and mechanical systems
This steel spherical rod end is engineered to allow pivoting in the housing to compensate for misalignment in industrial applications. It features a precision-ground, hardened 440C stainless steel ball and 300 Series stainless steel body with bonded PTFE fabric race. Excellent for low- to moderate load applications where lubricating the parts is not desirable.
Technical Specifications
- Item Stainless Steel/PTFE Race Rod End
- Type Female Plain
- Ball 440C Stainless Steel Spherical
- Thread Left Hand
- Thread Size M10 x 1.5
- Inside Dia. 10/10.065mm
- Bearings 440C SS Spherical Ball
- Housing 300 Series Stainless Steel
- Construction Follows SAE Specification J1120
- Dimension A M10 x 1.5
- Dimension AA 10/10.065mm
- Dimension E 27 mm
- Dimension G 43 mm
- Dimension H 21 mm
- Dimension J 56.5 mm
- Dimension N 14 mm
- Max. Angular Misalignment 26 Degrees
- Static Radial Load 15,310 N
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: MGFL10T
- MPN: MGFL10T
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B0B5XV21ND, B071YMS26B, B07YXMD8VN
Product info last updated on October 13, 2023 5:38pm UTC Category: Bearings
