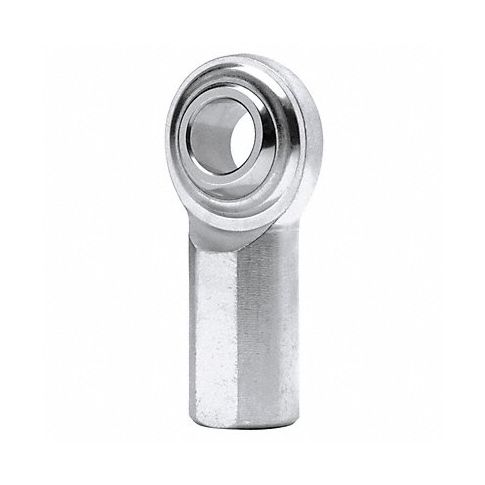

Female Rod End LH 6 mm Bore M6-1 MPN:MGFL6T
Titan USA's rod end provides a durable, versatile, and robust solution for demanding power transmission requirements in various machinery and equipment where the ability to rotate or swivel is essential. The left-hand threaded end delivers exceptional strength with minimal wobble ensuring optimal motion control while its stainless steel construction resists rust or corrosion even when exposed to harsh environments or chemicals. The female design enables straightforward installation with standard male rod ends by providing a cost-effective, adjustable connection that prevents loosening or slippage during operation. This rod end's key specs include bore size of 6 mm and 10mm, outside diameter of 14mm with a thickness of 25 mm and an overall length of 33mm while its applications span across diverse industries such as automotive, agriculture, and material handling among others where smooth, efficient motion is imperative.
Technical Specifications
- Item Stainless Steel/PTFE Race Rod End
- Type Female Plain
- Ball 440C Stainless Steel Spherical
- Thread Left Hand
- Thread Size M6 x 1.0
- Inside Dia. 6/6.065mm
- Bearings 440C SS Spherical Ball
- Housing 300 Series Stainless Steel
- Construction Follows SAE Specification J1120
- Dimension A M6 x 1.0
- Dimension AA 6/6.065mm
- Dimension E 19 mm
- Dimension G 30 mm
- Dimension H 14 mm
- Dimension J 39.5 mm
- Dimension N 9 mm
- Max. Angular Misalignment 23 Degrees
- Static Radial Load 6,138 N
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: MGFL6T
- MPN: MGFL6T
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
