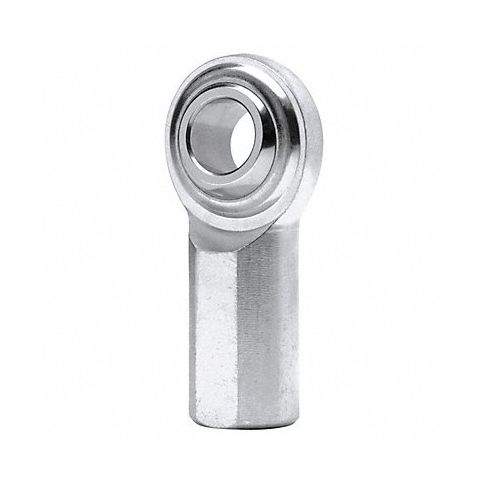

Female Rod End RH 6 mm Bore M6-1 MPN:MGFR6T
Female Rod End RH 6 mm Bore M6-1
Tekton's female rod end is an industrial hardware component designed for demanding applications where precision and reliability are critical. Made of high-quality steel with a zinc plated finish, this rod end has a M6-1 thread size and a bore of 6mm, making it suitable for various attachment methods to rod or tube components. Its double seal construction offers protection against dust, dirt and moisture while ensuring a smooth and durable operation. The female thread design makes it ideal for use in machinery, robotics, automotive and aerospace industries where precise alignment and adjustability are essential. Tekton's Female Rod End is a versatile product that provides reliable performance in various applications.
This steel spherical rod end is engineered to allow pivoting in the housing to compensate for misalignment in industrial applications. It features a precision-ground, hardened 440C stainless steel ball and 300 Series stainless steel body with bonded PTFE fabric race. Excellent for low- to moderate load applications where lubricating the parts is not desirable.
Technical Specifications
- Item Stainless Steel/PTFE Race Rod End
- Type Female Plain
- Ball 440C Stainless Steel Spherical
- Thread Right Hand
- Thread Size M6 x 1.0
- Inside Dia. 6/6.065mm
- Bearings 440C SS Spherical Ball
- Housing 300 Series Stainless Steel
- Construction Follows SAE Specification J1120
- Dimension A M6 x 1.0
- Dimension AA 6/6.065mm
- Dimension E 19 mm
- Dimension G 30 mm
- Dimension H 14 mm
- Dimension J 39.5 mm
- Dimension N 9 mm
- Max. Angular Misalignment 23 Degrees
- Static Radial Load 6,138 N
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: MGFR6T
- MPN: MGFR6T
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
