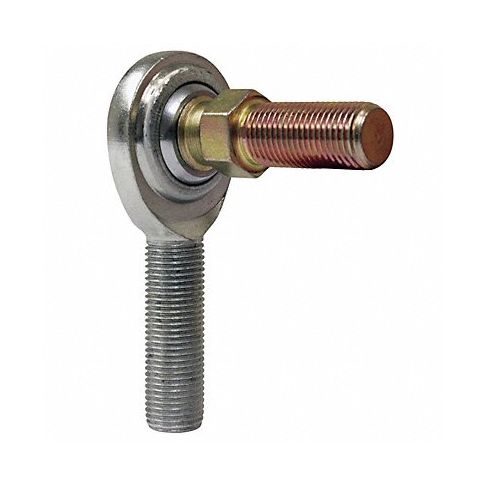

Male Rod End RH 16 mm Bore M16-2 MPN:MCMR16S
The male rod end is designed to offer precision control and maneuverability for linear motion systems. It has a robust steel construction that can carry heavy loads of up to 395 lbf while maintaining excellent thread protection, ensuring reliable connections even in extreme environments or corrosion-prone areas. With an imperial size of M16-2 and a bore size of 16 mm diameter, it is suitable for various industrial applications including robotics, automotive engineering, aerospace systems, mining equipment, and construction machinery. The product comes with a 16mm hex nut, enabling easy attachment to linkages or rods for precise movement control in dynamic systems. Its compatibility with ISO standard threads ensures interchangeability with other parts, making it a versatile component suitable for diverse applications within bearing industries.
Technical Specifications
- Item Rod End
- Type Male Studded
- Ball 52100 Steel Spherical
- Thread Right Hand
- Thread Size M16 x 2.0
- Stud Length 38 mm
- Bearings 52100 Steel Spherical Ball
- Housing Low Carbon
- Construction Follows SAE Specification J1120
- Dimension A M16 x 2.0
- Dimension B 24 mm
- Dimension C 38 mm
- Dimension E 38 mm
- Dimension G 66 mm
- Dimension H 40 mm
- Dimension J 85 mm
- Dimension N 21 mm
- Max. Angular Misalignment 33 Degrees
- Static Radial Load 37,391 N
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: MCMR16S
- MPN: MCMR16S
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
