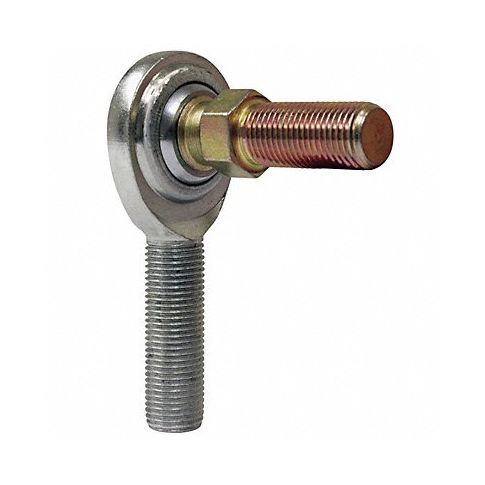

Male Rod End RH 14 mm Bore M14-2 MPN:MCMR14S
The Male rod end provides exceptional precision and durability, thanks to its high-quality steel construction with a one inch fourteen bore and metric threads. The spherical feature prevents wear and tear during operation, while the M14-2 thread ensures compatibility with standard industrial systems. Its versatile design makes it suitable for various industries such as robotics, automation or automotive requiring precise and dependable movement in multiple directions. The combination of these characteristics provides unmatched strength and reliability for industrial applications, making it an essential component in any heavy-duty operation that demands accuracy. Overall, Male Rod End RH 14 mm Bore M14-2 is ideal for companies in need of premium quality components that can withstand harsh environments while providing outstanding performance.
Technical Specifications
- Item Rod End
- Type Male Studded
- Ball 52100 Steel Spherical
- Thread Right Hand
- Thread Size M14 x 2.0
- Stud Length 33 mm
- Bearings 52100 Steel Spherical Ball
- Housing Low Carbon
- Construction Follows SAE Specification J1120
- Dimension A M14 x 2.0
- Dimension B 20.5 mm
- Dimension C 33 mm
- Dimension E 34.75 mm
- Dimension G 60 mm
- Dimension H 36 mm
- Dimension J 77.375 mm
- Dimension N 19 mm
- Max. Angular Misalignment 30 Degrees
- Static Radial Load 35,214 N
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: MCMR14S
- MPN: MCMR14S
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
