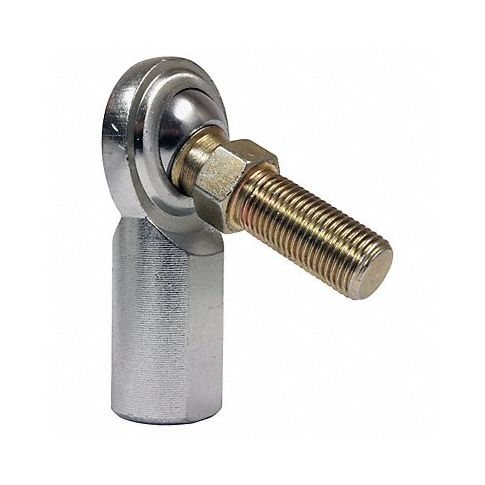

Female Rod End RH 12 mm Bore M12-1.75 MPN:MCFR12S
SKU
226-CXO-39N459
Female Rod End RH 12 mm Bore M12-1.75
QA1 Female Rod End RH 12 mm Bore M12-1.75 is a versatile industrial component designed to handle misalignment in applications requiring pivoting movements. Its construction includes a precision-ground, chrome-plated hardened 52100 steel spherical ball bearing and a carbon steel housing for durability, making it ideal for harsh environments. The right-hand thread design allows users to install the rod end into the housing with ease. With a M12 x 1.75 thread size, this product is suitable for machinery, equipment, and vehicles alike. Its ability to compensate for misalignment makes it an essential component in ensuring smooth operation in demanding applications.
Top product features:
- Precision-ground, chrome-plated hardened 52100 steel spherical ball bearing for high performance and durability in demanding applications
- Carbon steel housing for increased strength and longevity in harsh environments
- Right-hand thread design allows easy installation into the housing while pivoting compensates for misalignment, ensuring smooth operation
Top product applications:
- Pivoting applications that require misalignment compensation in industrial settings such as machinery, equipment, and vehicles
- Heavy-duty machinery or vehicles where high performance and durability are essential for long-term use and reliable operation
- Applications that demand precise movement, such as robotics or automation systems that require accurate pivoting motion
This steel spherical rod end is engineered to allow pivoting in the housing to compensate for misalignment in industrial applications. It features 52100 steel ball bearing construction, and carbon steel housing to help provide durability in demanding applications.
Technical Specifications
- Item Rod End
- Type Female Studded
- Ball 52100 Steel Spherical
- Thread Right Hand
- Thread Size M12 x 1.75
- Stud Length 28.5 mm
- Bearings 52100 Steel Spherical Ball
- Housing Low Carbon
- Construction Follows SAE Specification J1120
- Dimension A M12 x 1.75
- Dimension B 19.5 mm
- Dimension C 28.5 mm
- Dimension E 30 mm
- Dimension G 50 mm
- Dimension H 24 mm
- Dimension J 65 mm
- Dimension N 16 mm
- Max. Angular Misalignment 27 Degrees
- Static Radial Load 25,819 N
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: MCFR12S
- MPN: MCFR12S
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B07G96BZDC, B0BL7LMPNW, B09R7T1517
Product info last updated on July 5, 2025 5:30am UTC Category: Bearings
