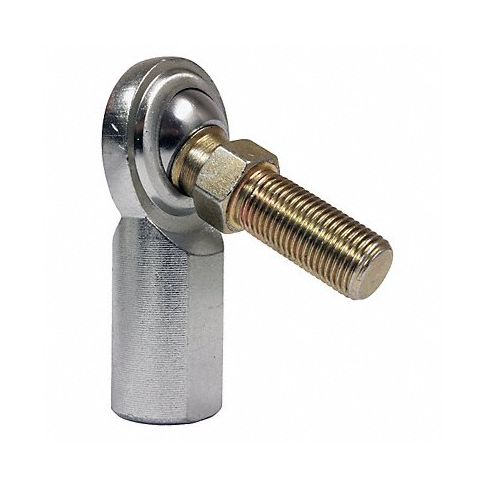

Female Rod End RH 8 mm Bore M8-1.25 MPN:MCFR8S
Female Rod End RH 8 mm Bore M8-1.25
The Female Rod End RH is a top choice for power transmission, robotic, automotive or machining settings demanding robust pivotal motion since it's constructed from durable alloy steel housing with reduced noise chrome-steel bearing balls offering long lifespan while M8-1.25 threaded insert promotes secure attachment on mating parts enhancing dependability time after time. Apt for harsh environmental conditions, the black oxide finish adds corrosion defense when employed outdoors in buildings or bridge construction projects making it versatile enough to fit various industry needs while offering consistent connections across applications reducing downtime promoting efficiency among users.
This steel spherical rod end is engineered to allow pivoting in the housing to compensate for misalignment in industrial applications. It features 52100 steel ball bearing construction, and carbon steel housing to help provide durability in demanding applications.
Technical Specifications
- Item Rod End
- Type Female Studded
- Ball 52100 Steel Spherical
- Thread Right Hand
- Thread Size M8 x 1.25
- Stud Length 17.5 mm
- Bearings 52100 Steel Spherical Ball
- Housing Low Carbon
- Construction Follows SAE Specification J1120
- Dimension A M8 x 1.25
- Dimension B 12 mm
- Dimension C 17.5 mm
- Dimension E 22.25 mm
- Dimension G 36 mm
- Dimension H 17 mm
- Dimension J 47.125 mm
- Dimension N 12 mm
- Max. Angular Misalignment 28 Degrees
- Static Radial Load 15,190 N
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: MCFR8S
- MPN: MCFR8S
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
