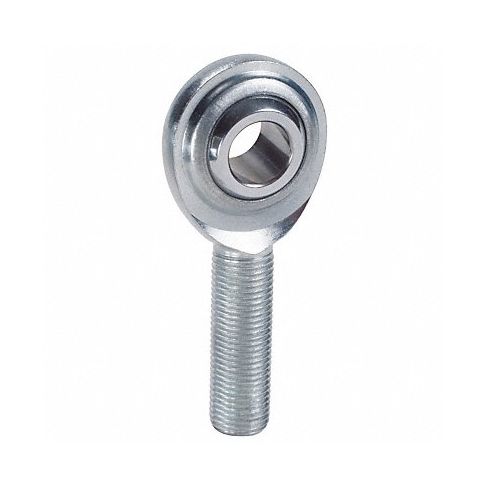

Male Rod End LH 14 mm Bore M14-2 MPN:MCML14
With a diameter of 14 millimeters bore size and an overall length of two inches this rod end boasts heavy duty steel construction capable of handling up to thousands of pounds of torque, ideal for high performance applications requiring sturdy metal-to-metal joints such as robotic assemblies or vehicle suspension systems where precision movement matters. Offered at cost efficient prices making it attractive proposition amongst hobbyist builders looking to upgrade their custom projects by outfitting them with premium components like these, yet priced reasonably enough making the perfect pick for large-scale commercial entities working on heavy machinery repair work where durable replacements parts that won't fail mid operation becomes crucial.
Technical Specifications
- Item Rod End
- Type Male Plain
- Ball 52100 Steel Spherical
- Thread Left Hand
- Thread Size M14 x 2.0
- Inside Dia. 14/14.065mm
- Bearings 52100 Steel Spherical Ball
- Housing Low Carbon
- Construction Follows SAE Specification J1120
- Dimension A M14 x 2.0
- Dimension AA 14/14.065mm
- Dimension E 34.75 mm
- Dimension G 60 mm
- Dimension H 36 mm
- Dimension J 77.375 mm
- Dimension N 19 mm
- Max. Angular Misalignment 30 Degrees
- Static Radial Load 35,214 N
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: MCML14
- MPN: MCML14
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
