Male Rod End RH 8 mm Bore M8-1.25 MPN:MCMR8
SKU
226-CXO-39N441

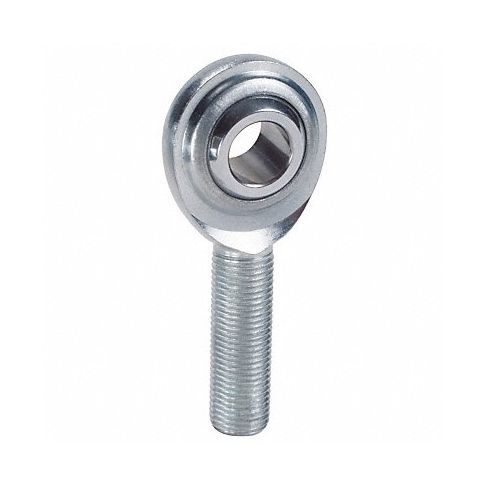

Male Rod End RH 8 mm Bore M8-1.25
Male rod end bearing with an 8 mm bore diameter is designed for applications requiring pivoting movements, such as those found in automotive suspension systems, hydraulic cylinders and machinery components. This item features an M8-1.25 threaded male stud which enables it to be mounted onto a wide range of rods or nuts for fixed or adjustable support structures. It provides smooth movement and durability when combined with compatible materials, while its pivoting ability adds flexibility to the application. Overall, this product is suitable for professionals working in the engineering, construction or automotive industries who require reliable, adjustable pivot points for their projects.
This steel spherical rod end is designed to allow pivoting in the housing to compensate for misalignment in industrial applications. The economical design features a precision-ground, chrome-plated hardened 52100 steel spherical ball bearing, and 1045 carbon steel body, which helps promote durability in harsh environments.
Technical Specifications
- Item Rod End
- Type Male Plain
- Ball 52100 Steel Spherical
- Thread Right Hand
- Thread Size M8 x 1.25
- Inside Dia. 8/8.065mm
- Bearings 52100 Steel Spherical Ball
- Housing Low Carbon
- Construction Follows SAE Specification J1120
- Dimension A M8 x 1.25
- Dimension AA 8/8.065mm
- Dimension E 22.25 mm
- Dimension G 42 mm
- Dimension H 25 mm
- Dimension J 53.125 mm
- Dimension N 12 mm
- Max. Angular Misalignment 28 Degrees
- Static Radial Load 13,591 N
Manufacturer Details
- Manufacturer: QA1
- Condensed Mfg Number: MCMR8
- MPN: MCMR8
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483308055
- GDS Category Name: Spherical Rod Ends
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171508
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 08
- UNSPSC Commodity Name: Rod end bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
